Firstly, thank you for purchasing and using EPC products of our company!
The automatic control system is a high-performance correction device which uses GL300 AC edge positon controller to detect signal from the sensor [SG-100 (infrared) and other switching value sensors] to control (linear type, center pivot type roller guide and boundary fulcrum type roller guide) movement of AC synchronous motor. In order to give full play to the performance of this device, be sure to read through the instruction manual and save it before using (so as to refer to it when you need).

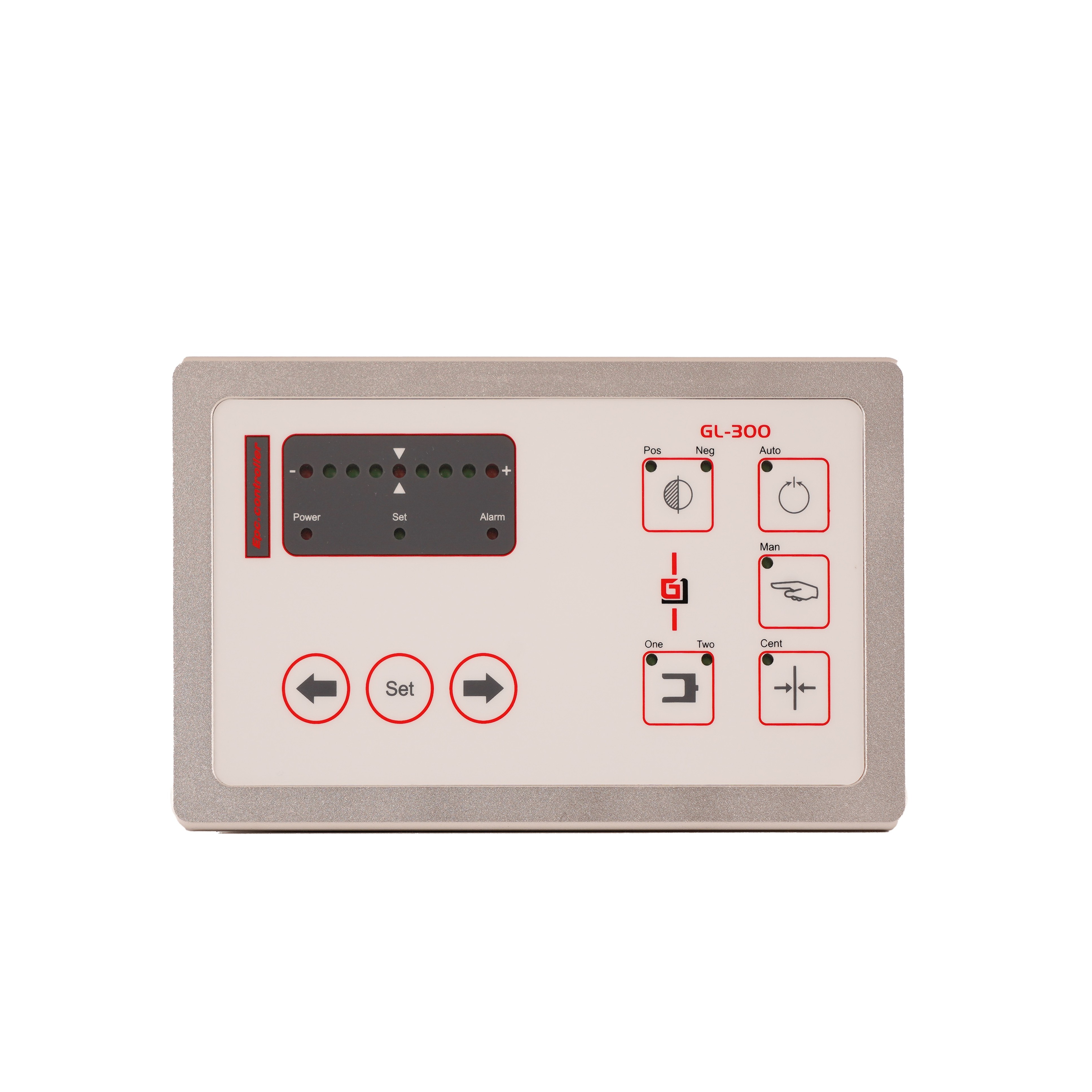

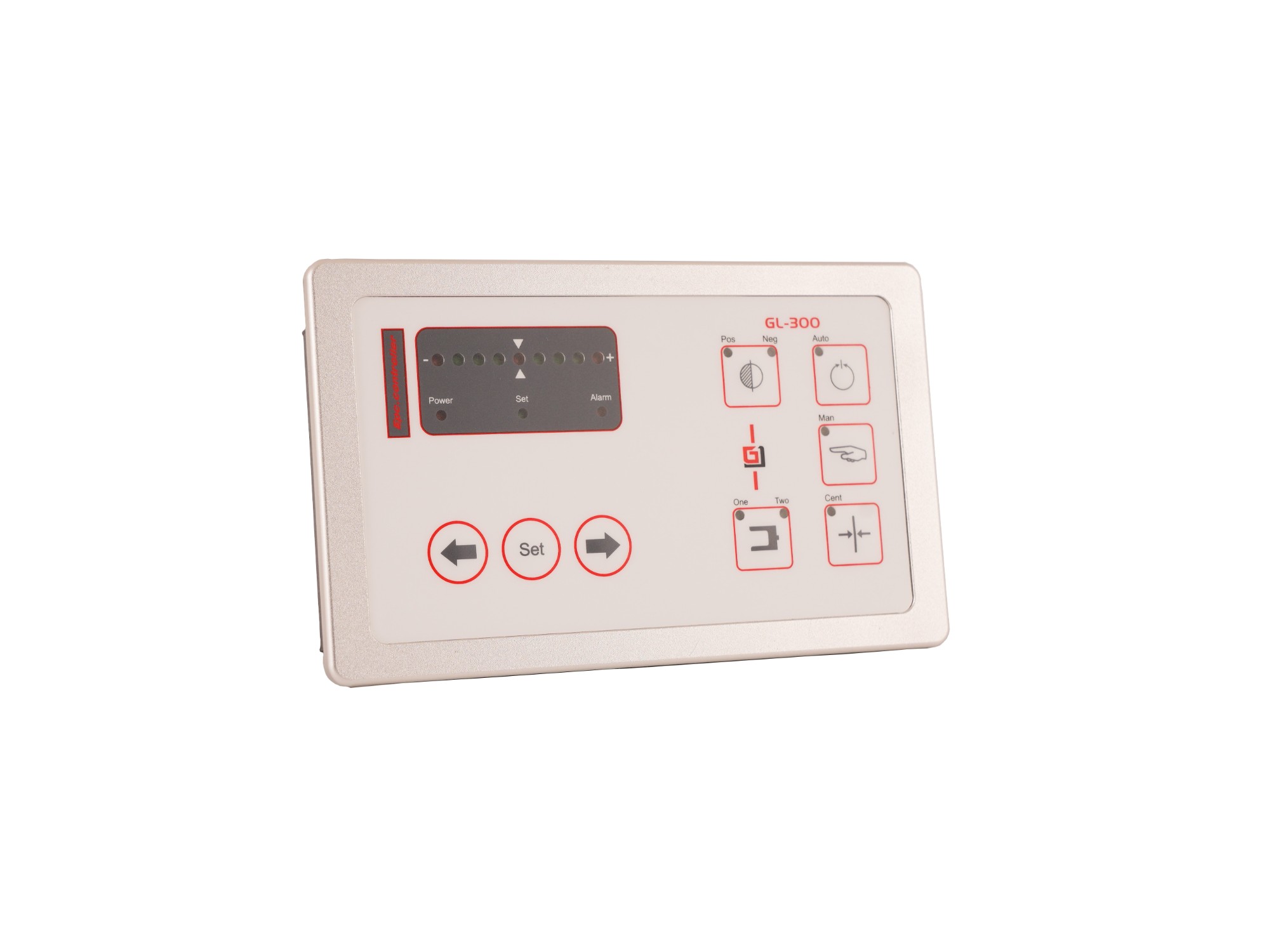

GL300 AC edge positon controller features:
1.Beautiful and compact appearance, high process level, strong anti-interference ability, strong anti-corrosion ability, simple
and convenient installation.
2. modular design, high stability, no vulnerable components and no maintenance.
3. There is no operation knob on the operation interface, and the operation is simple and intuitive by gently touching the key,
which can prevent misoperation.
4. The system is highly integrated, and the set parameters are saved automatically. The control accuracy can reach 0.02mm.
5. Single / dual channel (itlcoms) signal input. 6 remote manual / automatic mode control, limit alarm relay output, drive
current overload protection
| Parameter Configuration of Controller : | |
| Input power | AC220±5% |
| Input current | ≥2A |
| Output voltage | AC220V |
| Output current | Maximum is 2A |
| Control mode | Closed loop |
| Sensor signal input | Two-channel electrical level to the maximum |
| Operating environment | 0℃-40℃(humidity is below 80%RH) |
| Installation way | Embedded |
| Outline dimension | 156 long ×93 wide×106mm deep |
| Weight | About 1kg |

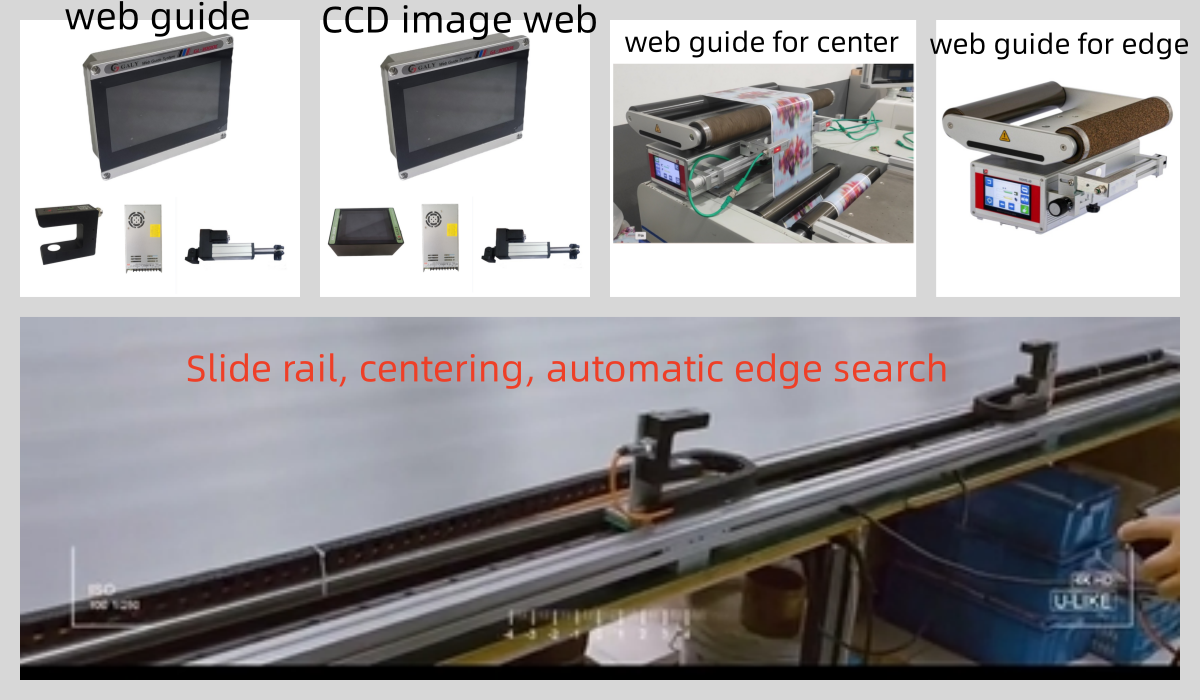

More Product

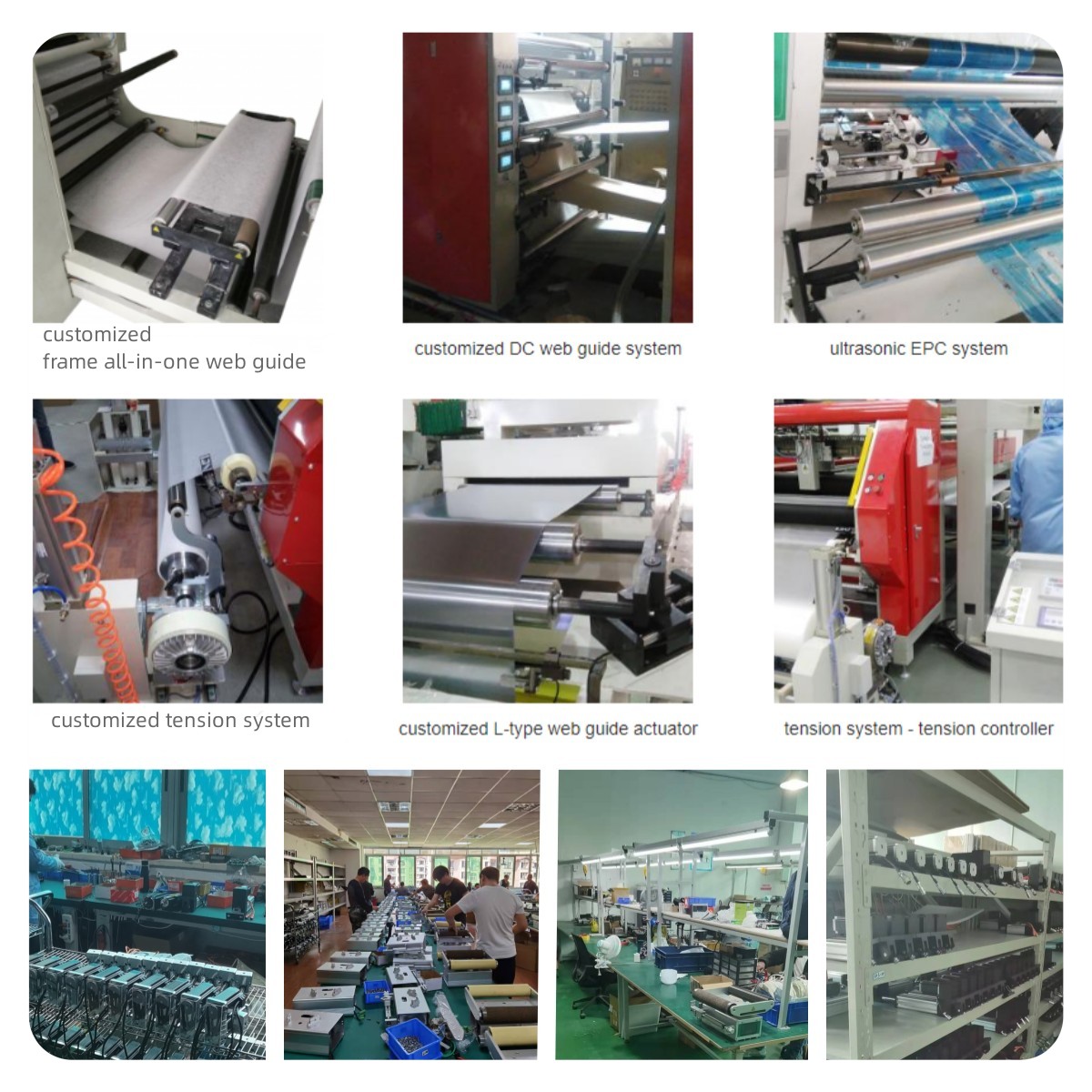

Customer site and Product line
