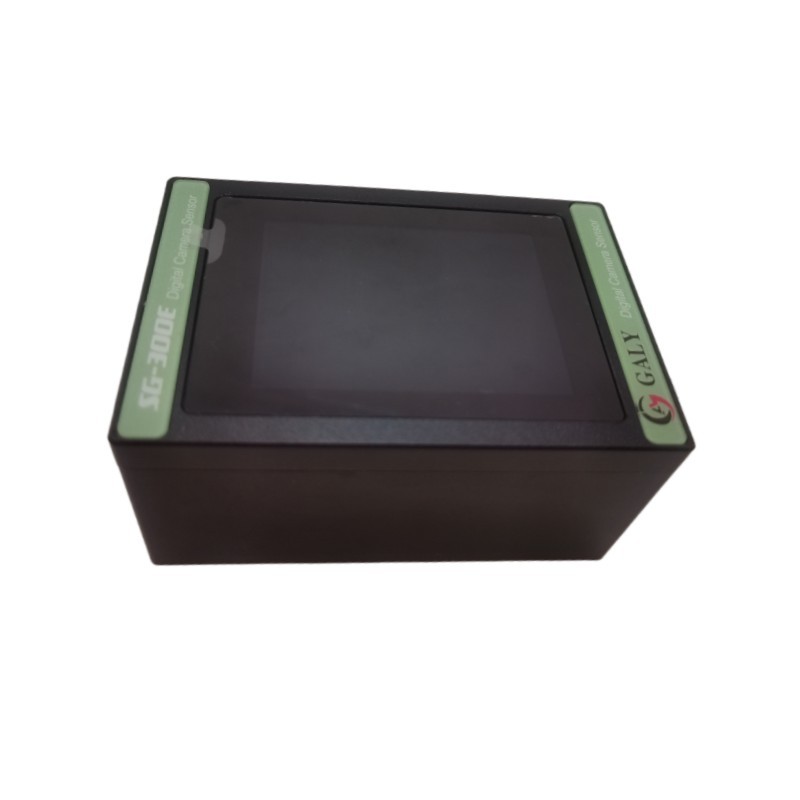

SG300E CCD image sensor

SG300E CCD image sensor Functions and Features:

This image sensor scans the material surface light contrast in real time through linear array CCD image sensing, which can realize non-contact scanning of materials .

1. Use high-speed linear array CCD image sensor elements to accurately track printing lines, printing edges or material edges;

2. Use full-color light-emitting diodes as background lighting sources. Different colors of lighting sources can be selected according to the reflective properties of the material surface to achieve the optimal lighting effect;

3. Adopt fully laminated glass capacitive touch panel, IPS high-bright color screen, menu-based operation interface, simple and intuitive;

4. Laser line-assisted positioning;

5. Configure USB storage interface to facilitate on-site tracking algorithm firmware upgrade;

6. Equipped with two output interfaces, analog and CAN communication, to facilitate integration into different correction systems;

Parameter：

1. Power supply voltage: 12~30Vdc 2. Current consumption: 120mA/24Vdc 3. Output interface: analog (2~8mA) or CAN bus (system configurable) 4. Ambient temperature: 0~50°C 5. Measuring range: ±10mm 6. Resolution: 0.05mm 7. Focus distance/format spacing: 25~30mm 8. Scan rate: 500~2000Hz 9. Protection level: IP54 10. Dimensions (length x width x height): 100x68x49mm

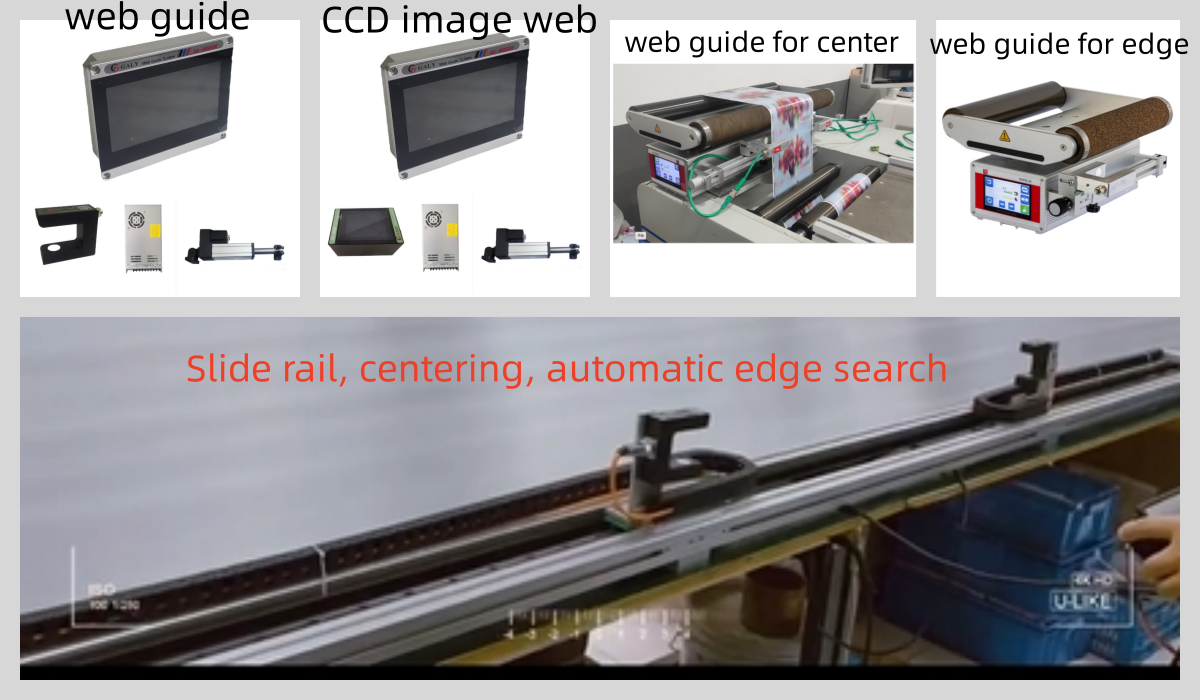

                                                            More Product

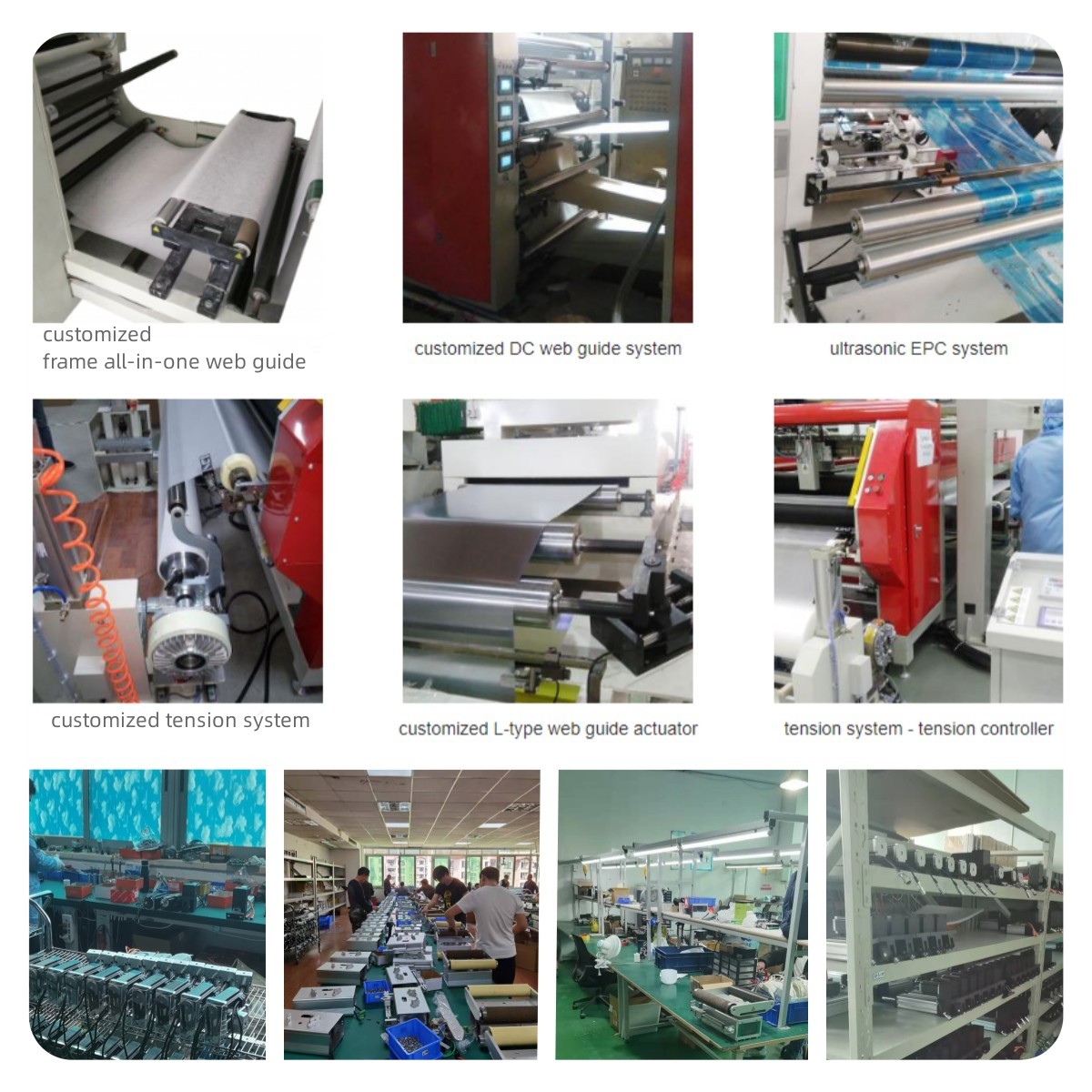

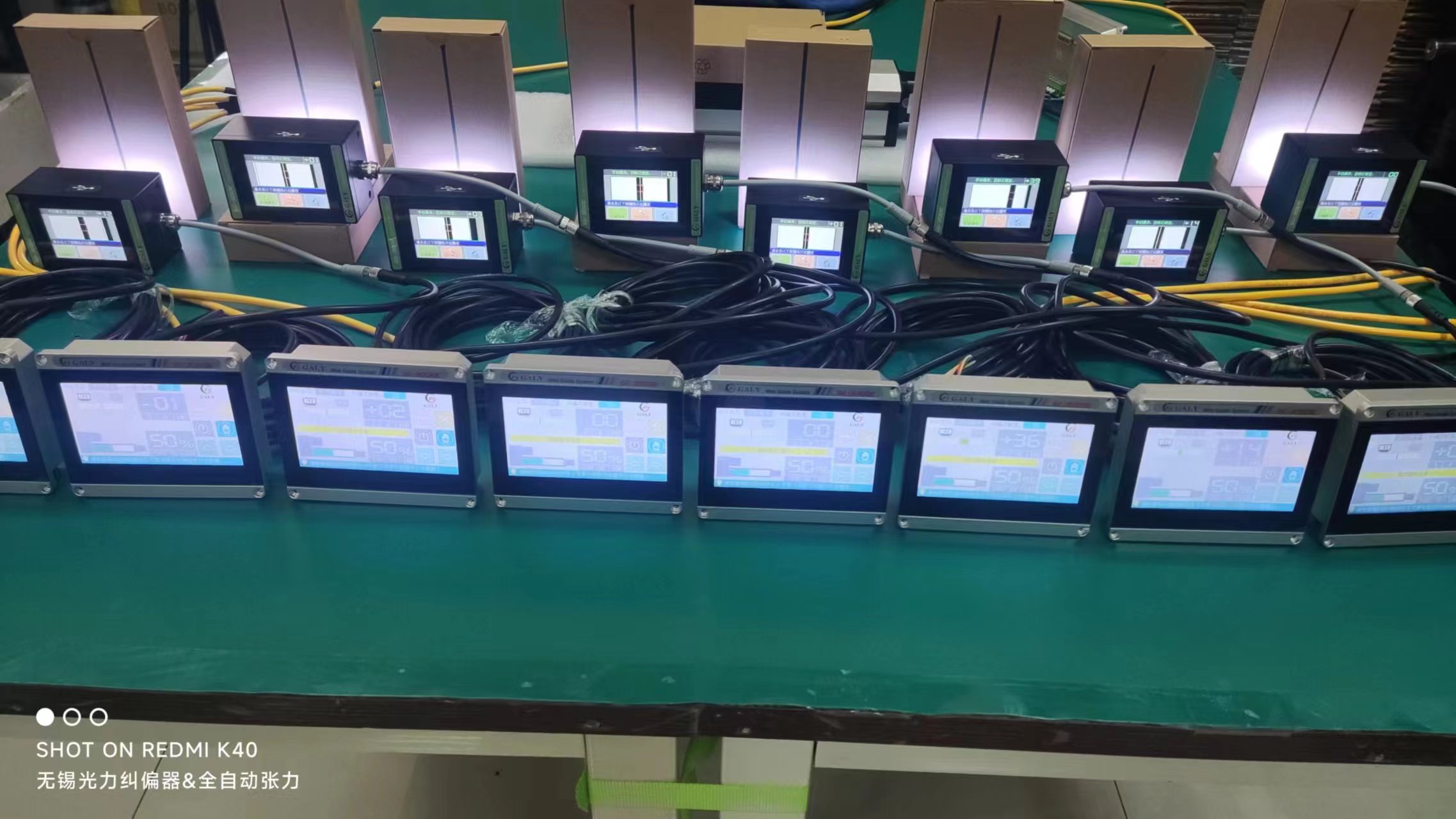

                                                              Customer site and Product line
