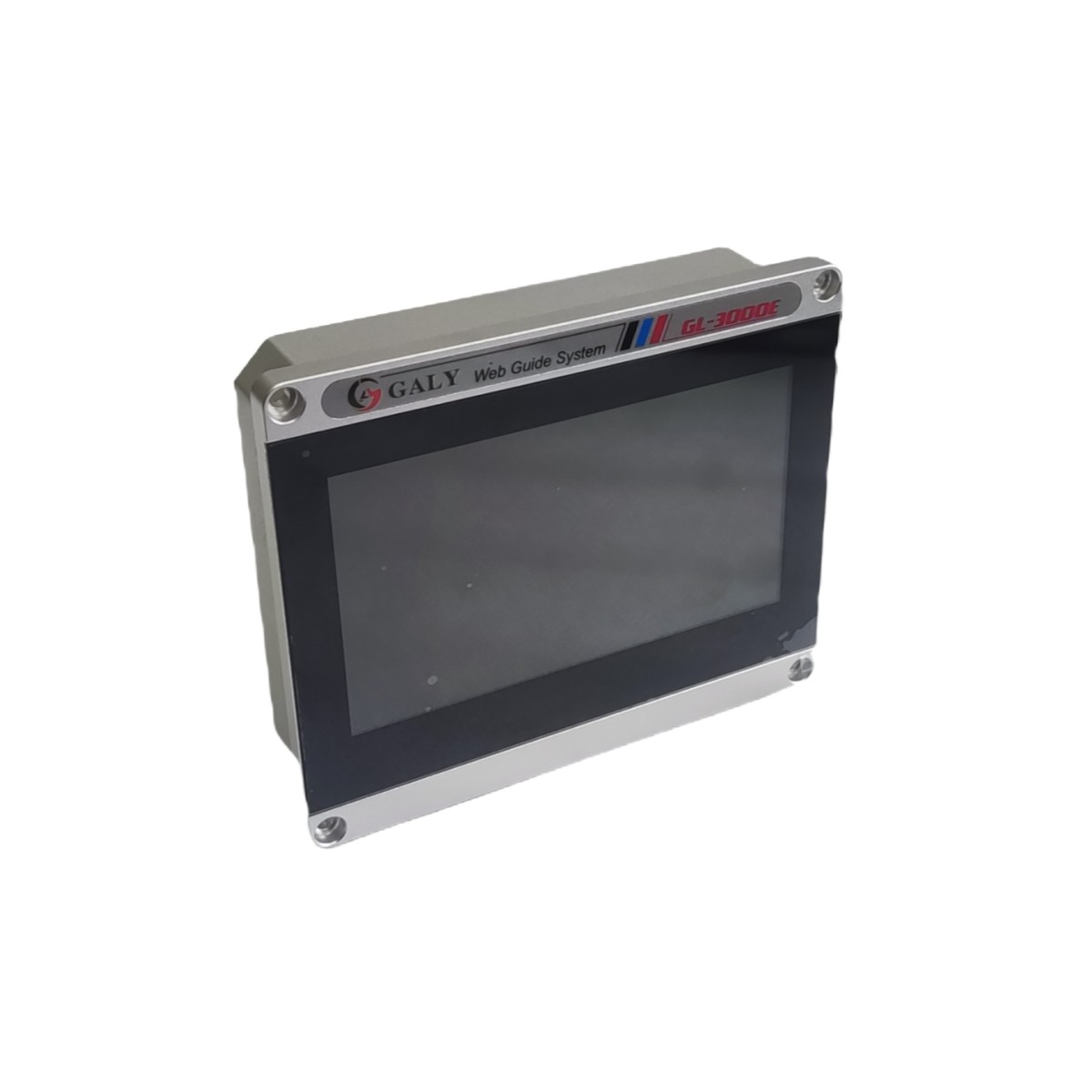

GL3000E servo brushless web guide controller

GL-3000E servo brushless web guide controller Features:

◎Reaction time 2ms, high precision;

◎System control accuracy 0.1mm;

◎ Can drive various EURDOW drives;

◎It can be connected to various EURDOW rectification sensors, which can realize rectification functions such as

   edge tracking, dual sensor centering, and line tracking;

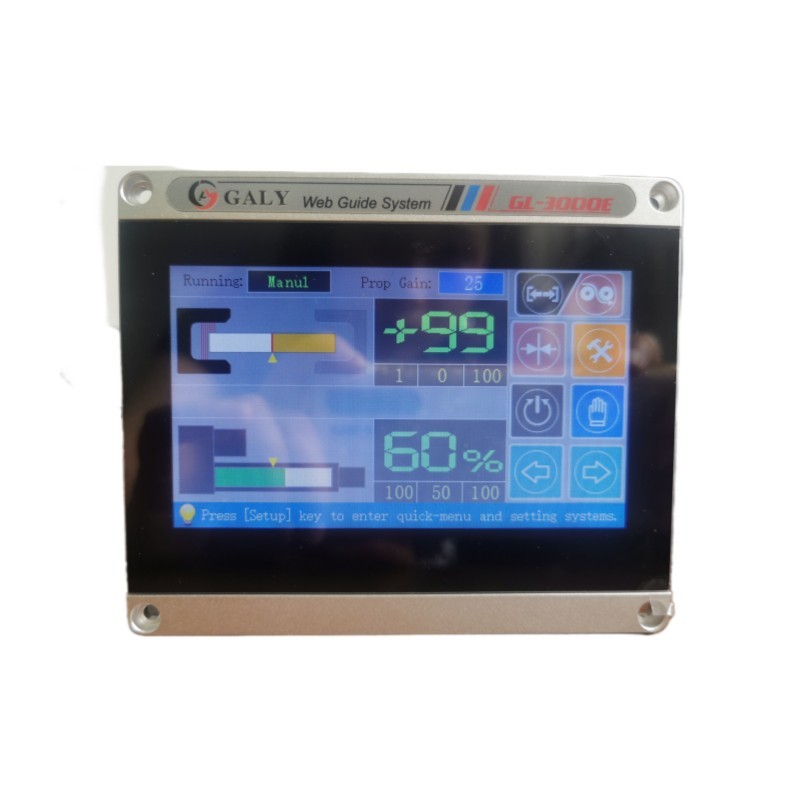

◎Using OLED high-resolution display screen to fully control the real-time status of the system;

◎Real-time display of material deviation, driver position current, temperature;

◎Screen sleep energy saving and screen lock protection;

◎Automatic running state can quickly modify system parameters online;

◎Abundant rectification functions: serpentine oscillation rectification, multi-layer rectification, material fault tolerance, etc.

Technical Parameter:

1. Processor (CPU): 32-bit high-performance microprocessor, the highest frequency is 48MHz;

2. Sensor interface: dual analog input;

3. Driver interface: support DC brushless motor driver, the maximum driving power is 240W;

4.1/0 interface: six-channel programmable remote control digital I/O;

5. Communication interface: RS485 (support Modbus-RTU protocol), which can be used for remote control;

6. Working environment: working temperature 0~-50*C; maximum humidity 5~9096, no condensation;

7. Power supply: 24V DC;

8. Protection circuit: support overcurrent, overvoltage, overload. Short circuit and power reverse connection protection:

9. Support limit alarm, fault alarm. Fault self-diagnosis.

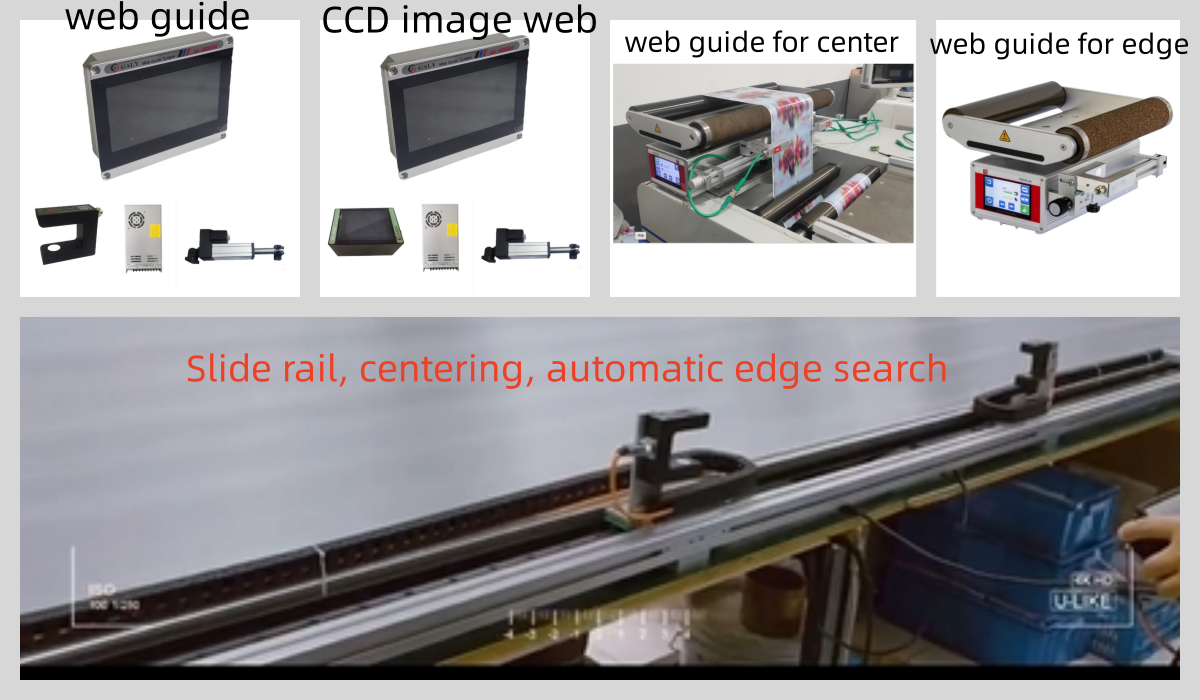

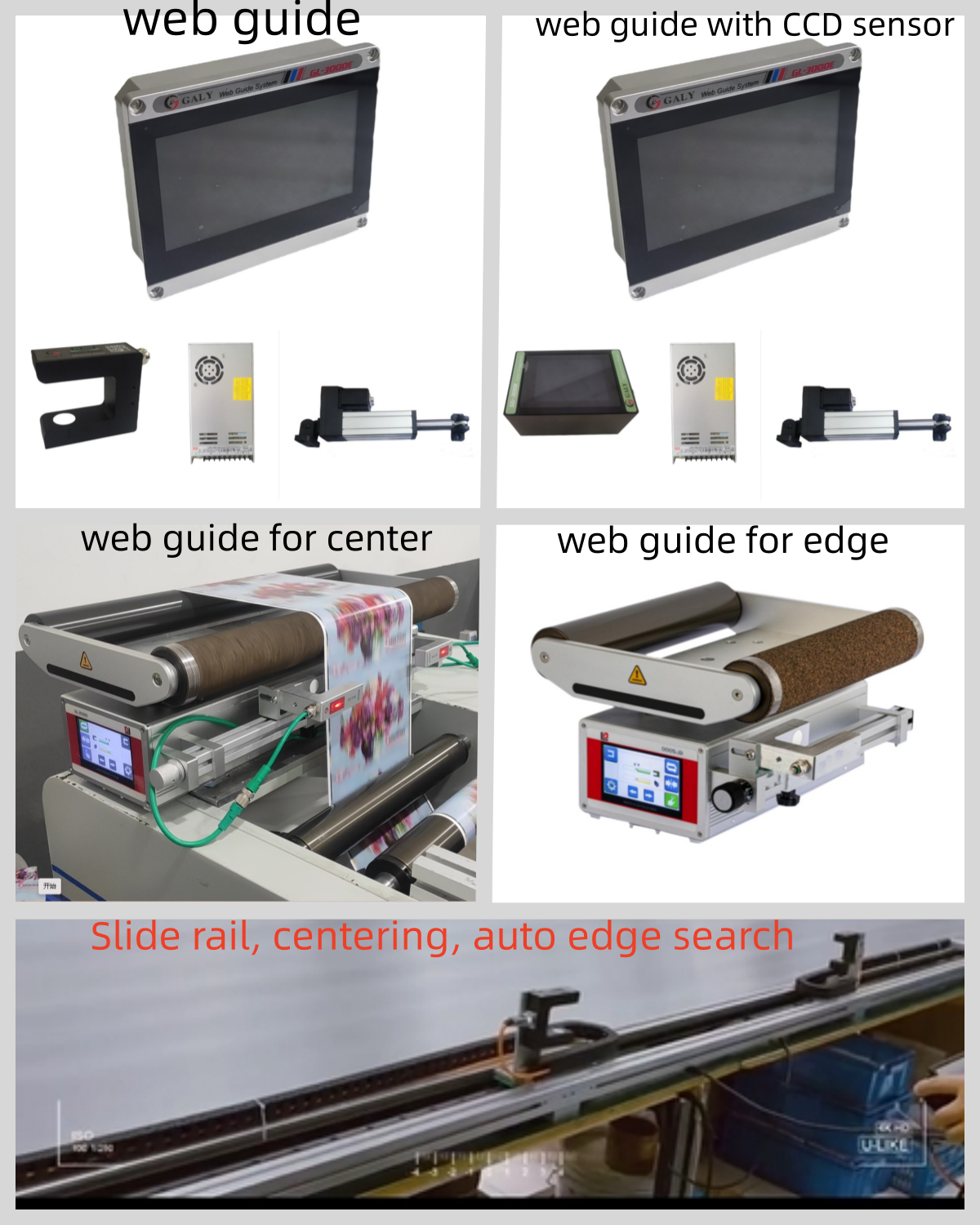

                                             More Product
