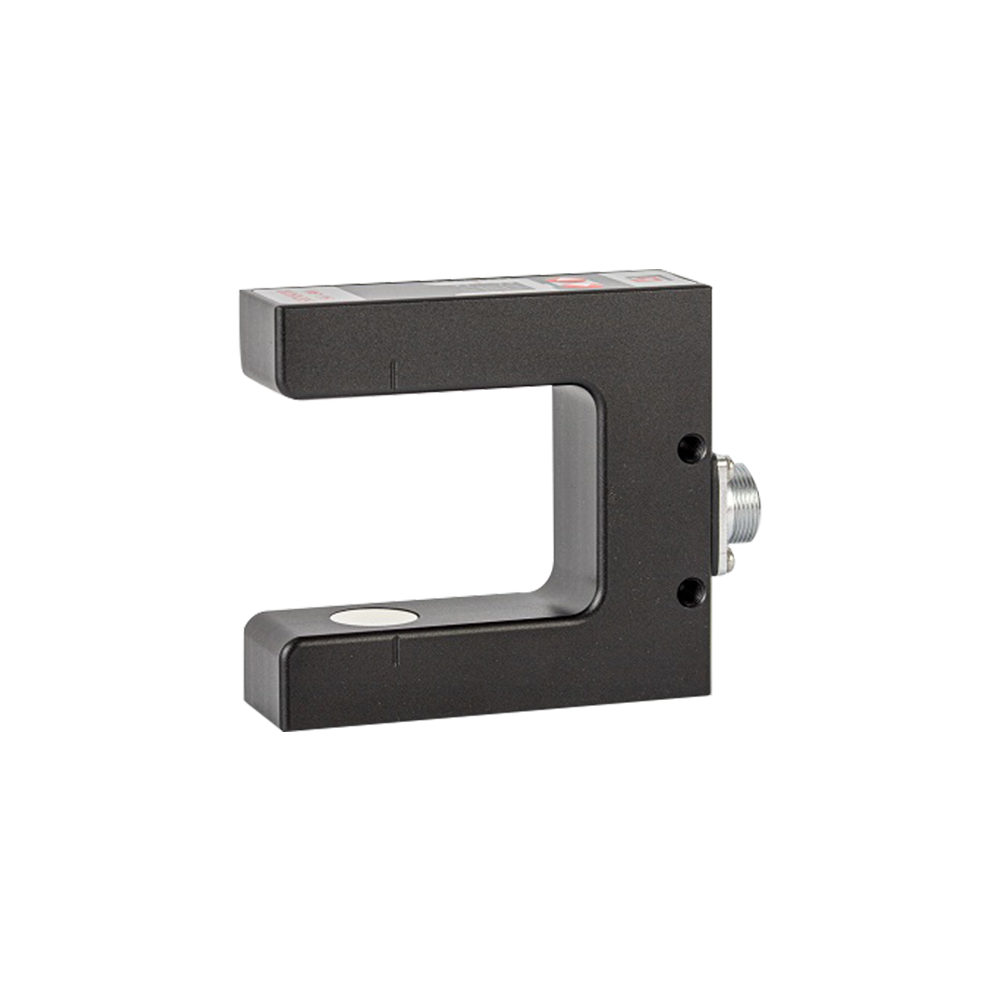

High Precision SG500 Ultrasonic edge sensor
Parameter configuration:
Model: SG-500
Detection mode: For edges
Detection distance: 51mm
Detection range: 8mm(±4)
Detecting element: ultrasonic
Working voltage: DC10-30V
Use and characteristics:
Ultra-transparent film, narrow film
SG500 Ultrasonic edge sensor features:
1. Aluminum alloy shell design, strong and durable, high process level and strong anti-interference ability
2. Simple operation without any debugging, 0-5V analog voltage output, and the control accuracy can reach 001mm.
3. Modular design, high stability, no vulnerable components and no maintenance.
Parameter configuration:
Model | SG-500 | SG-100 | SG-30B | SG-50B |
Detection mode | For edges | Opposite side | Reflective | Thru-beam |
Detection distance(mm) | 51mm | 30mm | 300mm | 10m |
Detection range(mm) | 8mm(±4) | 8mm(±4) | ||
Detecting element | ultrasonic | Imported silicon photocell | LED red light | LED red light |
Working voltage | DC10-30V | DC10-30V | DC12-24V | DC12-24V |
Use and characteristics | Ultra-transparent film | Ordinary transparent, semi-transparent film, mesh | Black non-reflective and reflective material | Opaque material |
narrow film |
More Product

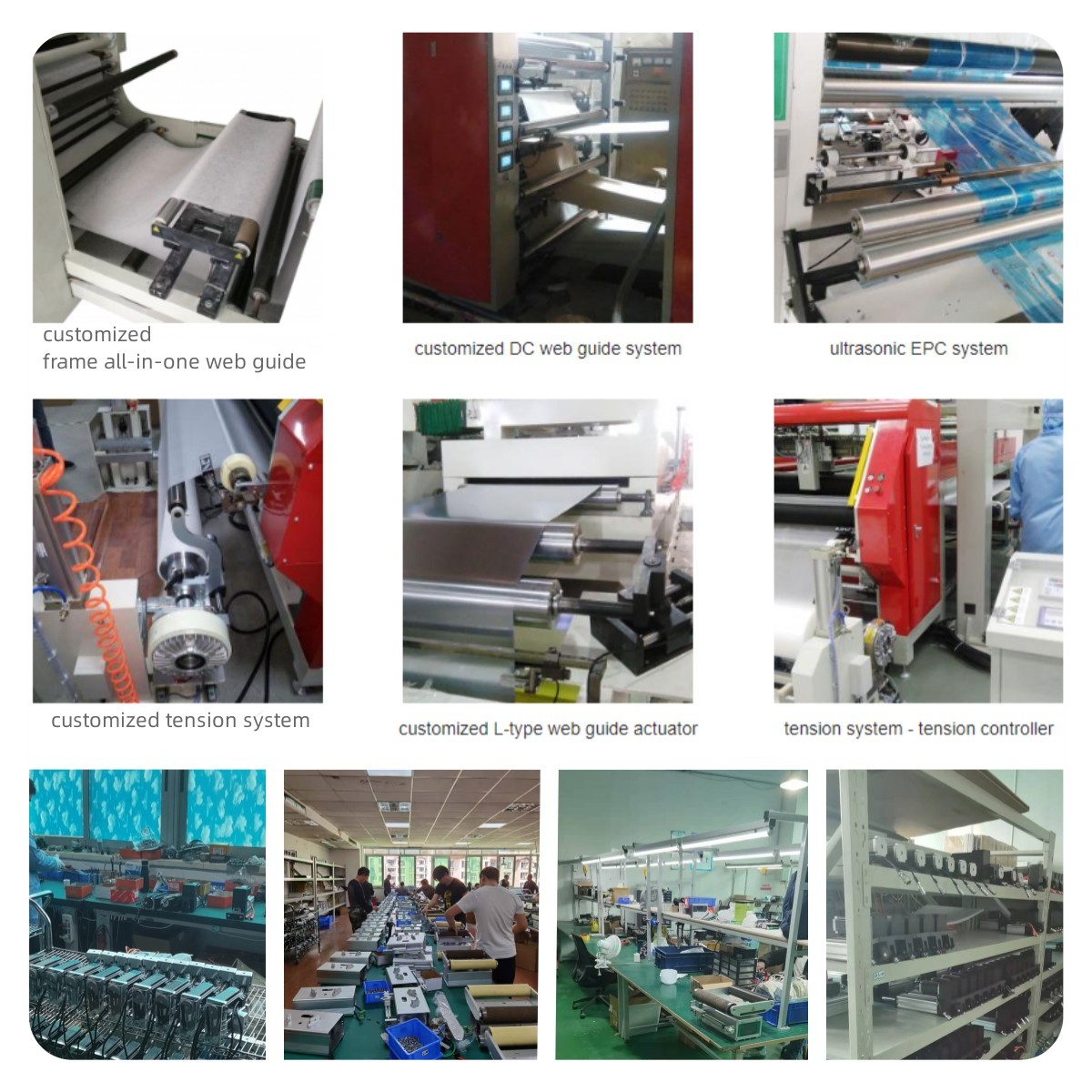

Customer site and Product line
