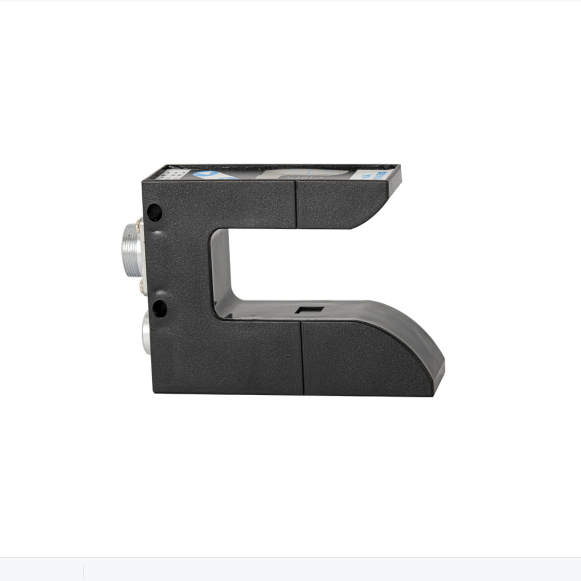

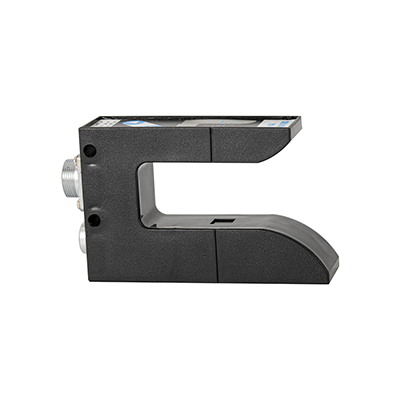

SG100 lnfrared edge sensor for line position control
Parameter configuration:
Model: SG-100
Detection mode: Opposite side
Detection distance: 30mm
Detection range: 8mm(±4)
Detecting element: Imported silicon photocell
Working voltage: DC10-30V
Use and characteristics:
Ordinary transparent, semi-transparent film, mesh
SG100 lnfrared edge sensor Parameter configuration:
Model | SG-500 | SG-100 | SG-30B | SG-50B |
Detection mode | For edges | Opposite side | Reflective | Thru-beam |
Detection distance(mm) | 51mm | 30mm | 300mm | 10m |
Detection range(mm) | 8mm(±4) | 8mm(±4) | ||
Detecting element | ultrasonic | Imported silicon photocell | LED red light | LED red light |
Working voltage | DC10-30V | DC10-30V | DC12-24V | DC12-24V |
Use and characteristics | Ultra-transparent film | Ordinary transparent, semi-transparent film, mesh | Black non-reflective and reflective material | Opaque material |
narrow film |
Instructions for use of SG-100 infrared sensor adjustment:

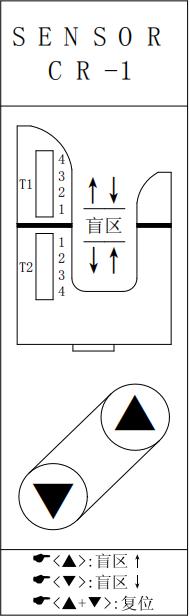

1: Diagram: "1, 2, 3 and 4" in the left figure represents the level of detection blind area, "4" represents the maximum control accuracy of detection blind area and the lowest (the detection blind area is automatically set to "1" during reset) "T1 and T2" represent the output direction, "T1" light means that the detection area is not blocked, "T2" light means that the detection area is completely blocked. When "T1" and "T2" lights are not on, it means that the material works within the normal deviation range. At this time, the two switch signals of the sensor are high-level output "▲" and "▼" are the adjustment and reset keys for the detection blind area
2: operation: "▲" = increase of detection blind area "▼" = decrease of detection blind area "▲ + ▼" press it at the same time to reset the sensor. When the sensor cannot work normally, press two keys at the same time to reset (there shall be nothing in the electric eye detection area during reset, otherwise the reset effect will be affected)
3: maintenance: regularly clean the detection lens with neutral detergent to prevent too much dust from affecting the detection accuracy. (do not use corrosive liquids such as Tianna water to clean the lens)
