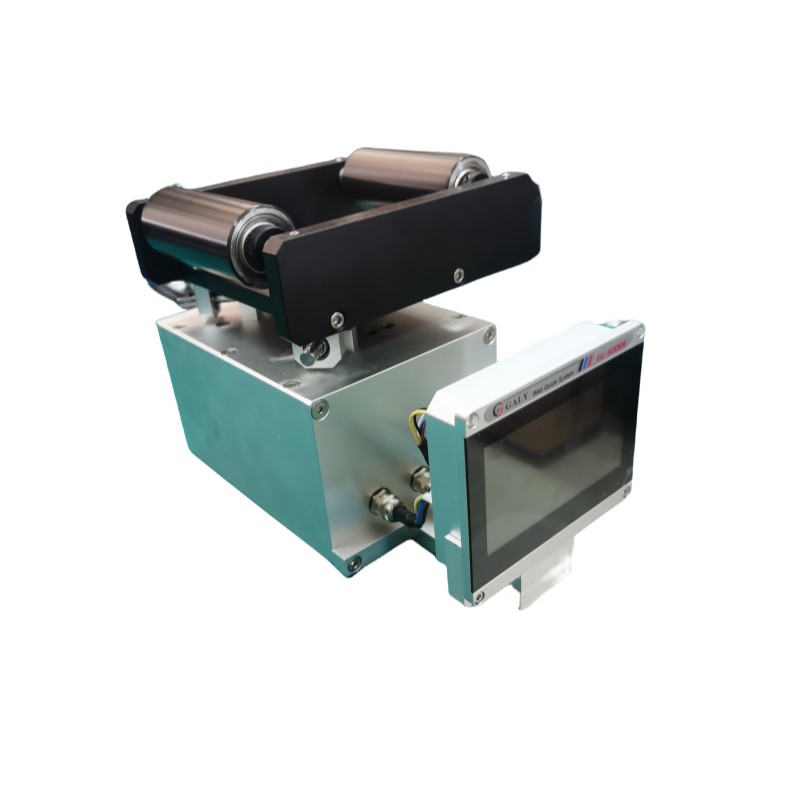

GL3000E Split All In One Web Guiding System

GL3000E All In One web guiding control system-Servo brushless system :

Customized different roller length.


GL3000E Split ALL IN ONE Web Guiding System Product Description:

1 Real-time display of working state.
2 Intelligent judgment prompt of system failure.
3 Brushless servo drive, durable in use and free of maintenance.
4 High dynamic response with accurate location.
5 Limiting position point and centering point could be adjusted randomly.
6 Supporting standard Modbus（RS485）communication interface and remote IO controlling interface, facilitating
customer could carry out integration control in PLC system.
7 Connecting paper platform is applied pressing roll design, with larger operating space; Exclusive and overlength
pressing paper air bag, with better customer experience.
8 Electric circuit with high integration level and lower failure rate.

Technical Specifications :

Positional accuracy	< ±0,1 mm (material-dependent)
Error frequency	Max. 8 Hz
Nominal actuating travel 180 mm/200 mm	Max. ± 19 mm/Max. ±21 mm
Nominal actuating travel 250 mm/300 mm	Max. ± 14,5 mm/Max. ± 18 mm
Nominal actuating speed at outfeed roller	1 to 150 mm/s
Web tension 160/200/250/300/350 mm	max. 300 N
Web tension 400/450 mm	max. 200 N
Roller diameter	40/60/80 mm
Ambient temperature	+10 °C to +50 °C
Relative humidity	15 to 95 % (non-condensing)
Operating voltage, nominal value	24 V DC
Nominal range	20 to 30 V DC (ripple included)
Nominal range with power supply	100 to 240 V, 50/60 Hz
Current consumption	max. 4.5 A DC
