GL2000 CPC All In One Web Guiding System

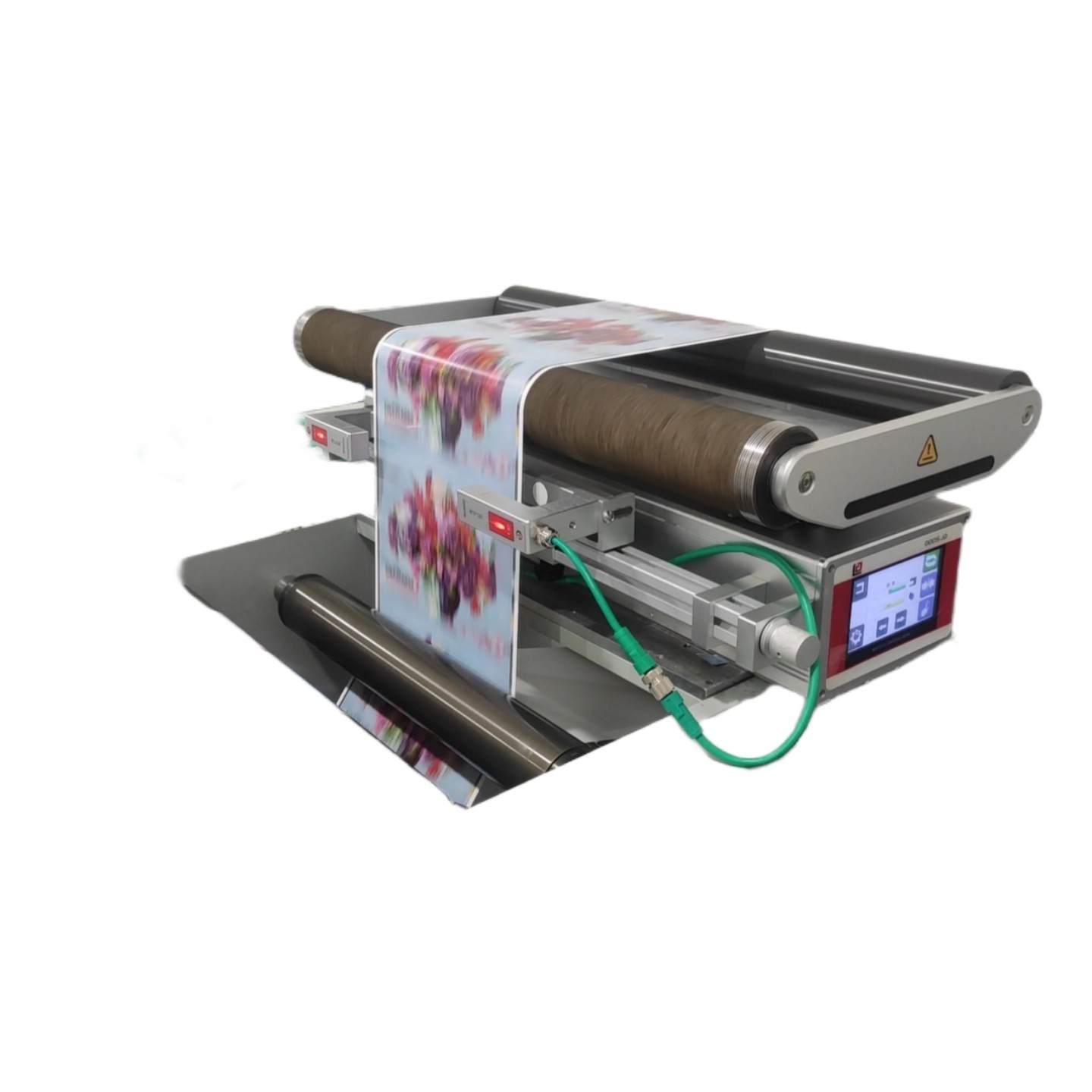

GL-2000 ALL IN ONE Web Guiding System Product Description:

Roller frame integrated machine is a high-performance servo deviation correction system with full touch screen operation.It is specially used for tracking material edges, tracking lines, contrast, and is suitable for automatic control such as deviation correction between coils.Signal detection by ultrasonic, infrared, CCD sensors,Calculate the offset of the material,And drive the servo motor and code feedback to accurately correct the offset material according to the result, mainly used in the industry of labels, non-woven fabrics, sanitary napkin production lines, flexo printing, bags and other industries

1, Track the edge of the coil and correct the uneven edge of the coil when winding.

2, Keep the distance between the coating material and the edge of the coil equal.

3, according to the running speed of different materials, the rectifying speed can be adjusted to match.

4, support three working modes: follow line, follow edge, center.

5, support photoelectric sensor, ultrasonic sensor, CCD image sensor.

6, automatic identification of sensor parameters, without calibration.

7, automatic stroke measurement without mechanical limit conversion.

8, ultra-high speed response, 500 microseconds (0.5 ms).

9, Directly connected servo motor drives ball screw.

10,Support 8 languages.

11, Convenient and humanized operation.

Parameter：

GL2000 All In One web guiding control system with a sheet laying table:

Working power input: DC24V,

current not less than 4A (150W recommended)

Working power output: DC12V, for sensor,

output current is not more than 1A

Motor drive output: Control output PWM pulse to control servo motor

Guide roll length: 160mm/200mm/250mm/300mm/350mm/400mm/450mm/500mm/600mm/700mm

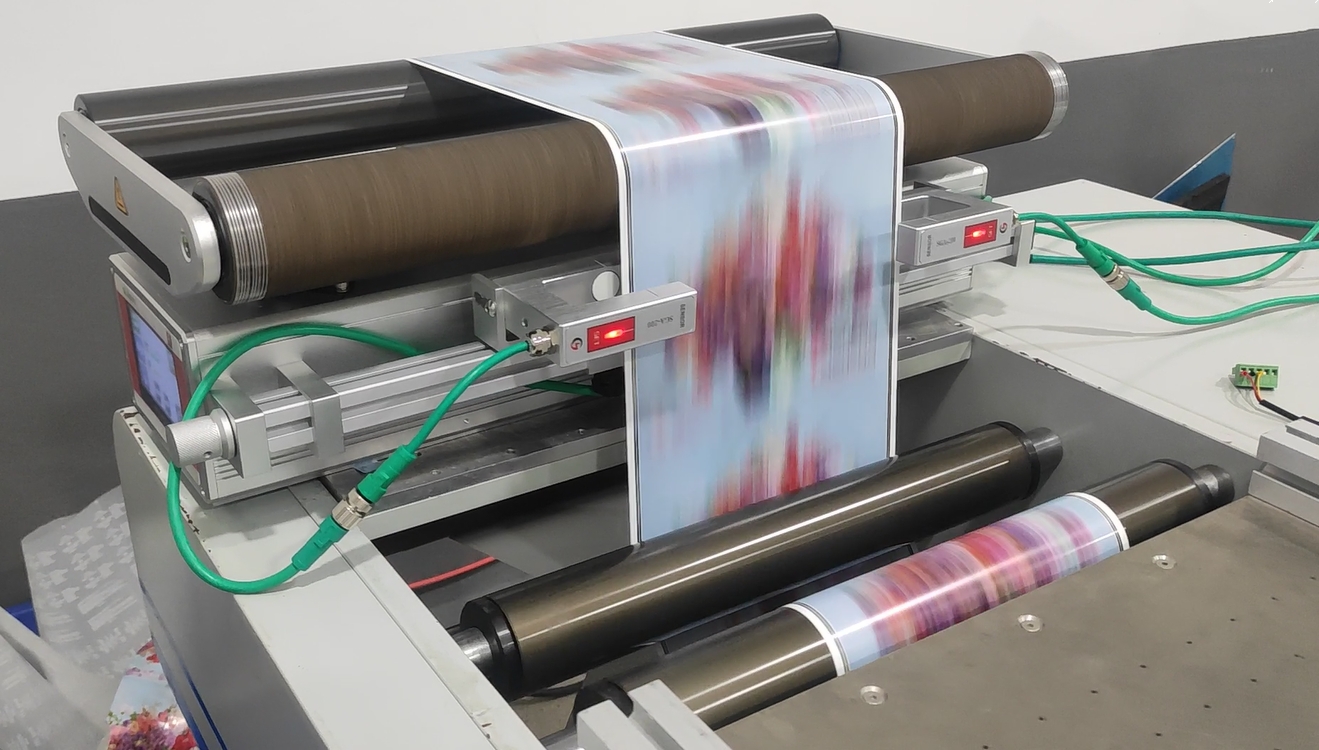

                                                 Customer site and Product line
