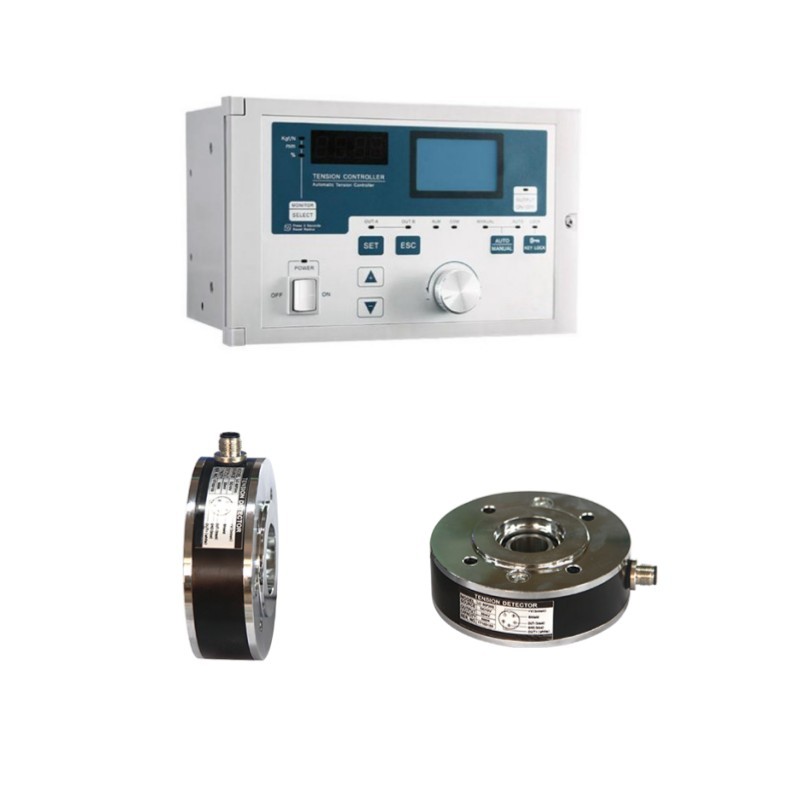

Through shaft tension control system
technical parameter:
Excitation voltage: 10VDC
Output signal: 2mVN (factory setting)
Strain gauge/resistor gauge: 350Ω
Detection type: full bridge
Maximum output signal: 150% TYP
Comprehensive error: (hysteresis, repeatability, nonlinearity error) <0.50%
Maximum overload capacity: 500% of rated load
Detection type: full bridge
The seat-type tension sensor is detected by imported full-bridge strain gauges (high-precision with built-in temperature compensation), and processed through high-precision signal and temperature compensation. It has the characteristics of high precision, low temperature drift, and good linearity. The sensor can effectively shield static electricity and frequency conversion. The group pulse interference of the device. It has a built-in overload limit to prevent damage to the sensor during overload. The sensors have various measuring ranges such as 5KG, 10KG, 30KG, 50KG, 100KG, and 200KG.
Through shaft tension load cell Features：
1. Low Lag
2. Temperature compensation
3. Full-bridge strain resistance gauge
4. Excellent linearity and stability
5. It is suitable for the detection of idler rolls or live rolls
6. The overload capacity is up to 500% of the rated load
