Auto Tension control System

new design high quality web tension controller for mask making machine
Technical Parameters Of GL-5000
1. Input power: single-phase power supply AC 185-264V,50/60HZ
2. Output power: power supply DC 0-24V, 4A MAX
3. Applicable models: mask machine, magnetic powder clutch brake, voltage regulator supply
4. External control signal: 0-10V, corresponding output 0-24V
5. Installation methods. floor model, wall-mounted. embedded
6. Required environment: 0-40C, relative humidity<80RH

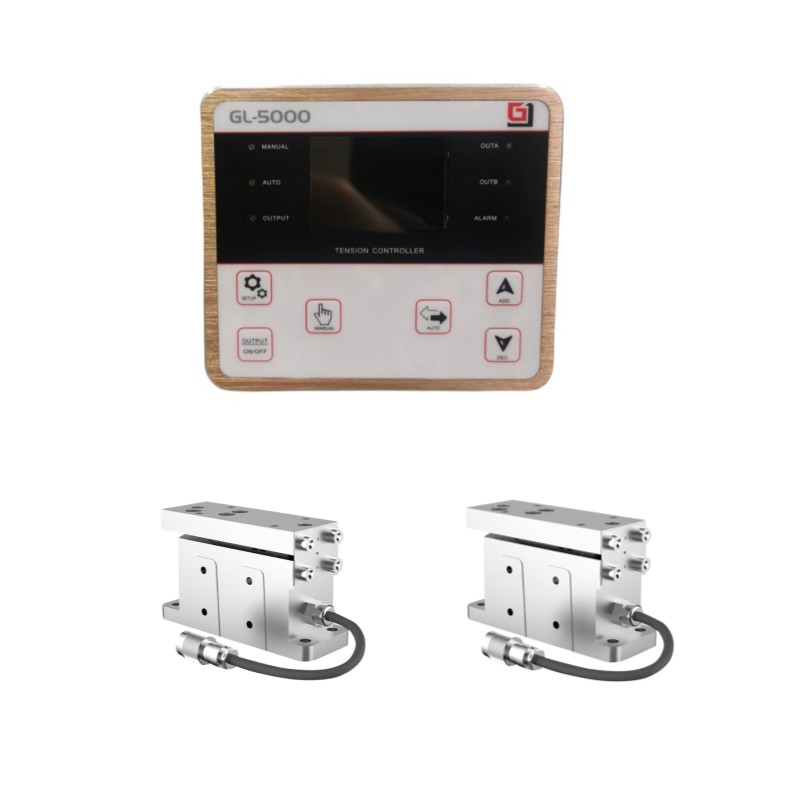

auto tension system GL5000.jpg

Auto tension control system

GL5000 is a fully automatic tension controller. It uses 16-bit high-precision AD sampling, sampling time 1uS. The sensor signal has high accuracy and speed. It can drive the magnetic powder brake. The sensor can be used as a single/double pressure sensor, and also can work automatically in Sensorless internal calculus. It can be widely used in many industries, such as paper making, printing, packaging, textile printing and dyeing. The precision of tension control directly affects the processing quality of products, so the key to improve the processing quality of products is to select a high-performance tension controller.

The seat-type tension sensor is detected by imported full-bridge strain gauges (high-precision with built-in temperature compensation), and processed through high-precision signal and temperature compensation. It has the characteristics of high precision, low temperature drift, and good linearity. The sensor can effectively shield static electricity and frequency conversion. The group pulse interference of the device. It has a built-in overload limit to prevent damage to the sensor during overload. The sensors have various measuring ranges such as 5KG, 10KG, 30KG, 50KG, 100KG, and 200KG.

Features:

* The tension data is displayed on the display screen by key-press operation, which is simple to operate.
* It can be used for tension control function of unwinding intermediate shaft or unwinding
* The tension calibration process is simple, and the tension measurement is accurate, stable and reliable.
* Single / double sensor input signal can be used to adapt to all kinds of tension sensors.
* It can realize RS485 communication and facilitate online system with PLC PC.
* No overshoot PID control is adopted to ensure the system running tension without overshoot.
* With dual axis switching function and acceleration and deceleration control functions.
* Manual / automatic switching control mode without excellent switching
* The controller uses switching power supply DC24V to ensure long-term reliable operation of the equipment.
* The controller adopts metal shell, which has stronger anti-interference and no spark safety

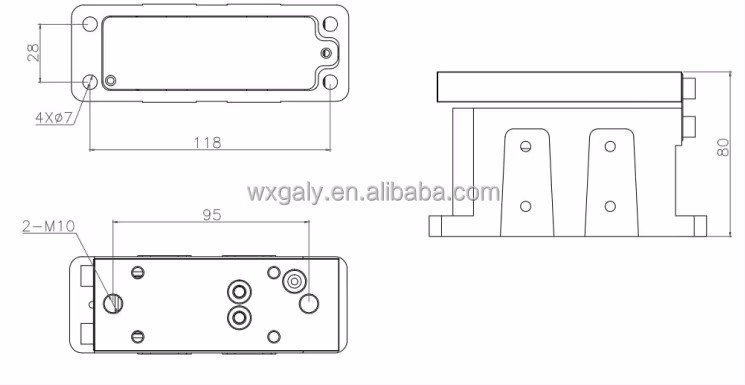

Installation Size:
