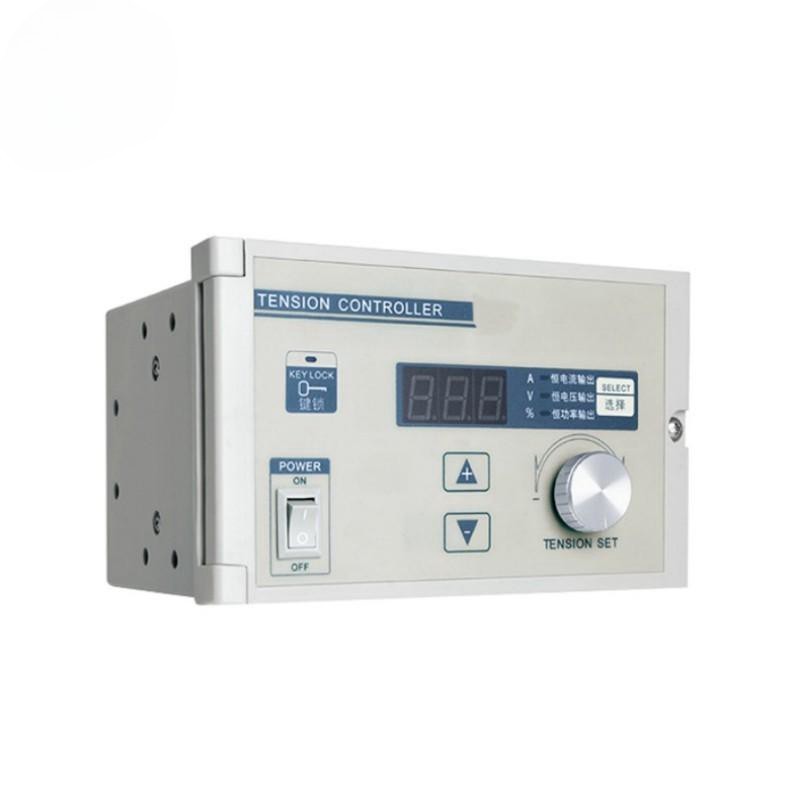

Manual tension controller

Manual tension controller

The manual tension controller is composed of a high-speed microprocessor and a high-power switching

power supply. It can work in three modes: constant current, constant voltage, and constant power (constant torque).

It can automatically compensate for the thermal attenuation of the clutch/brake, and the torque output is stable and

reliable.

Features :

1. Three working modes: constant current, constant voltage and constant power.

2. Automatically compensate for clutch/brake thermal attenuation and stabilize torque output

3. 0~4A constant current adjustable, step 0.01V

4. Can be connected to an external potentiometer or external 0~10V signal input

5. 0~24 constant voltage adjustable, step 0.1V

6. 0~100% constant power adjustment, step 1%

7. 4.5A overcurrent protection, short circuit protection

8. Long life adjustment knob/button
