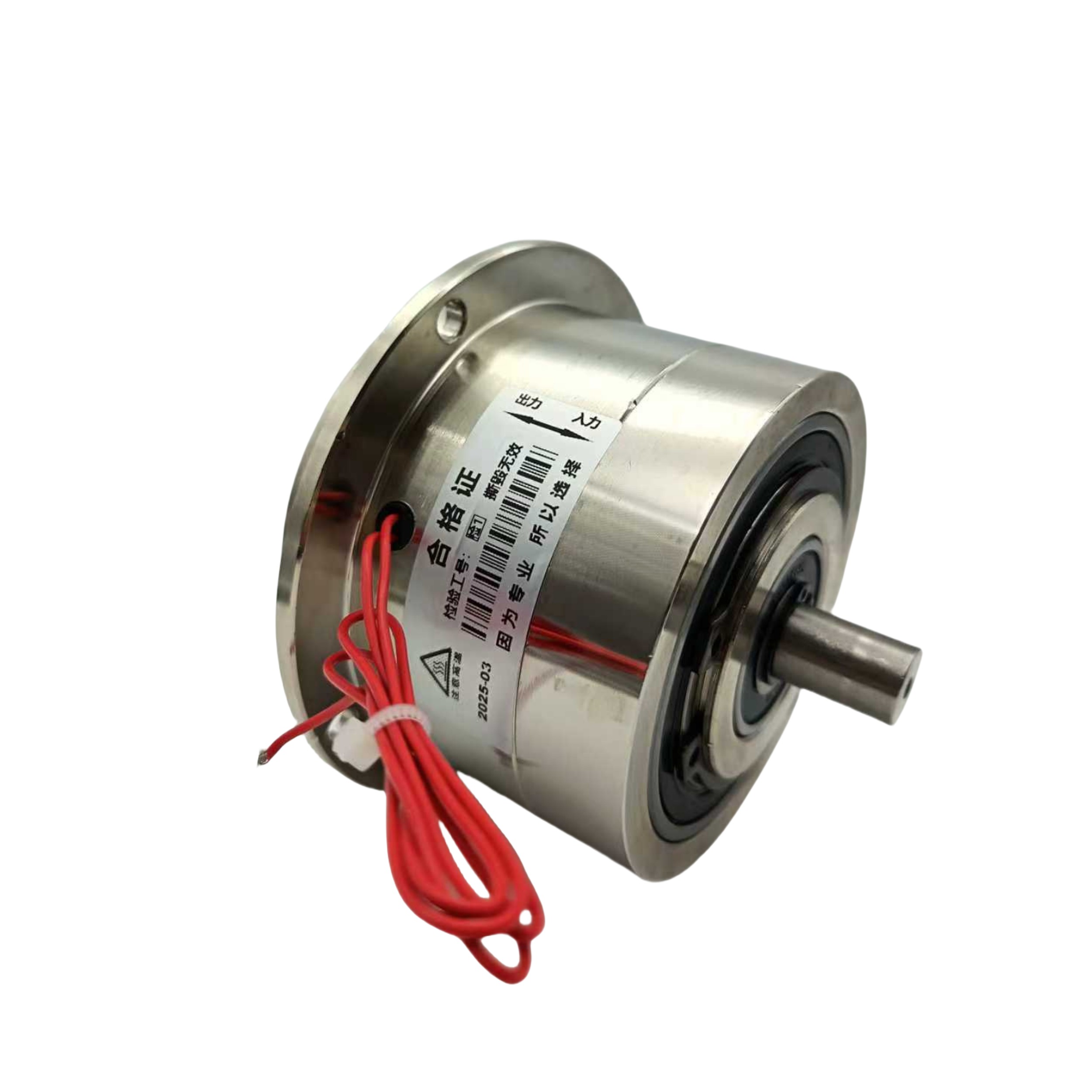

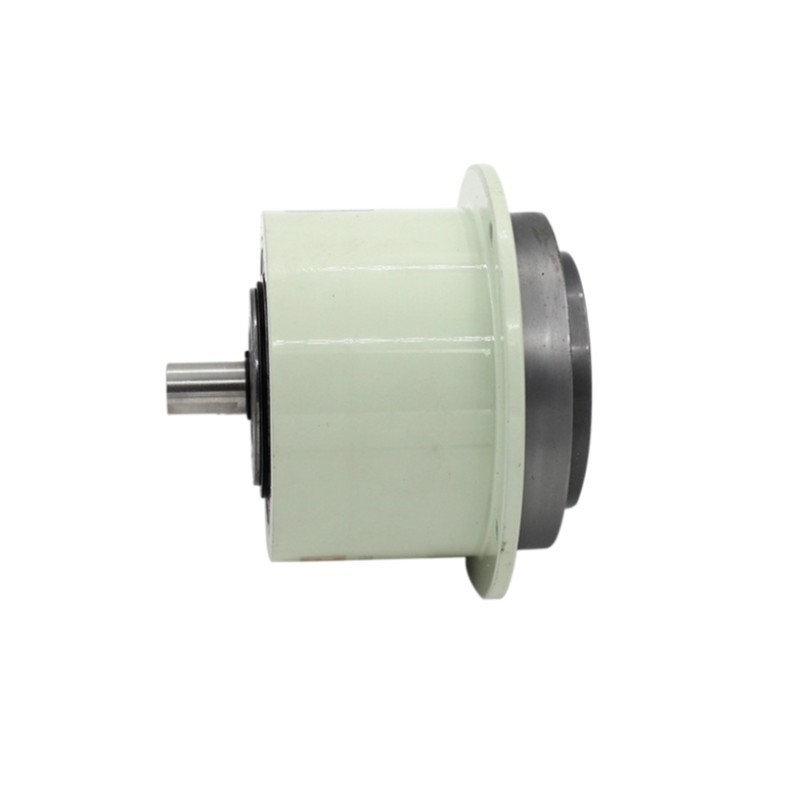

micro magnetic powder clutch

   Although the excitation current of the micro magnetic powder clutch is small, it can output a large torque, so that it can easily form an automatic control system.

    In addition, when the excitation current changes, the corresponding magnetic field strength also responds synchronously, and therefore has a superior response speed. When the excitation current remains unchanged, the output torque is not affected by the differential speed (slip speed) between the transmission part and the driven part, that is, there is no difference between static torque and dynamic torque.

    Therefore, the Boles-type miniature magnetic powder clutch can output constant torque very stably. If this feature is applied to tension control, the purpose of controlling the coil tension can be achieved simply, effectively and accurately only by adjusting the magnitude of the excitation current.

Advantages of Micro Magnetic Particle Clutches

1. Imported wool felt and bearings are used to improve the safety of magnetic powder leakage (for magnetic powder clutch and magnetic powder brake series);

2. Imported high-purity magnetic powder is used, which is wear-resistant and durable, and its performance is easier and more stable to use;

3. 100% enameled coils are used to improve the linearity of magnetic powder clutches/brakes;

4. Advanced CNC lathe production, machining center and testing equipment;

5. Has a number of advanced independent research and development technologies, and can be designed and manufactured for special purposes;

6. The first to pass the ISO9001:2008 quality management system certification, one year warranty, three months included, free trial!

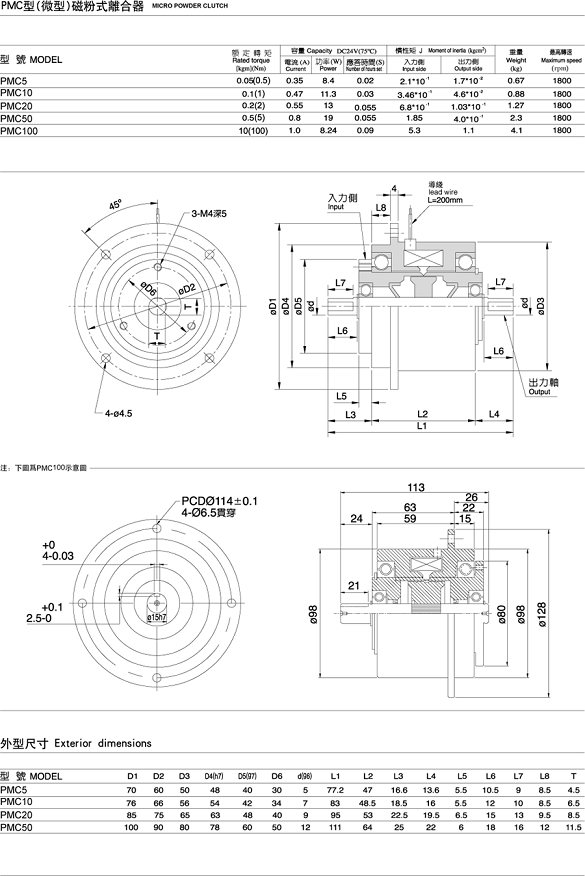

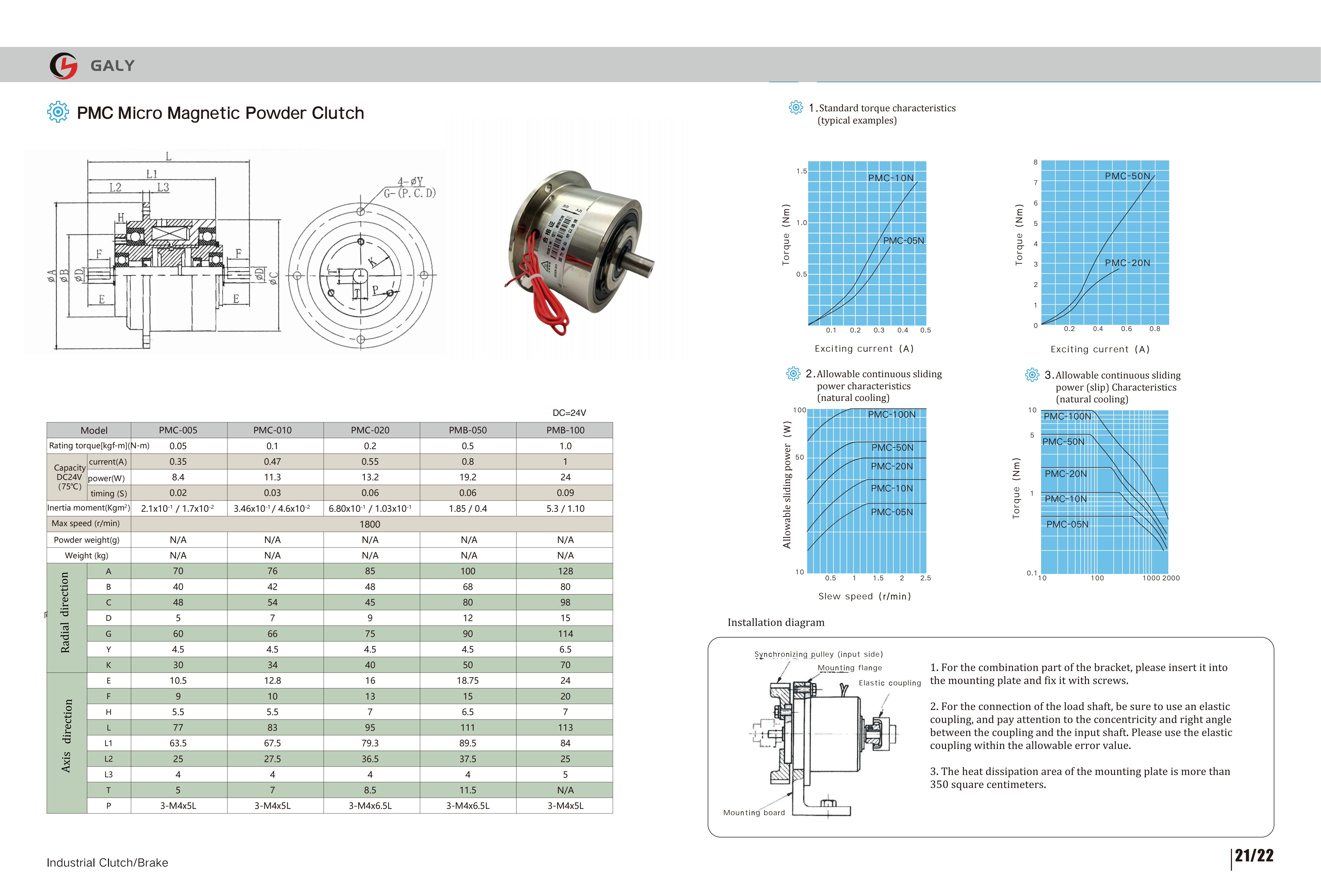

The installation dimensions and specifications of the miniature magnetic powder clutch are as follows:
