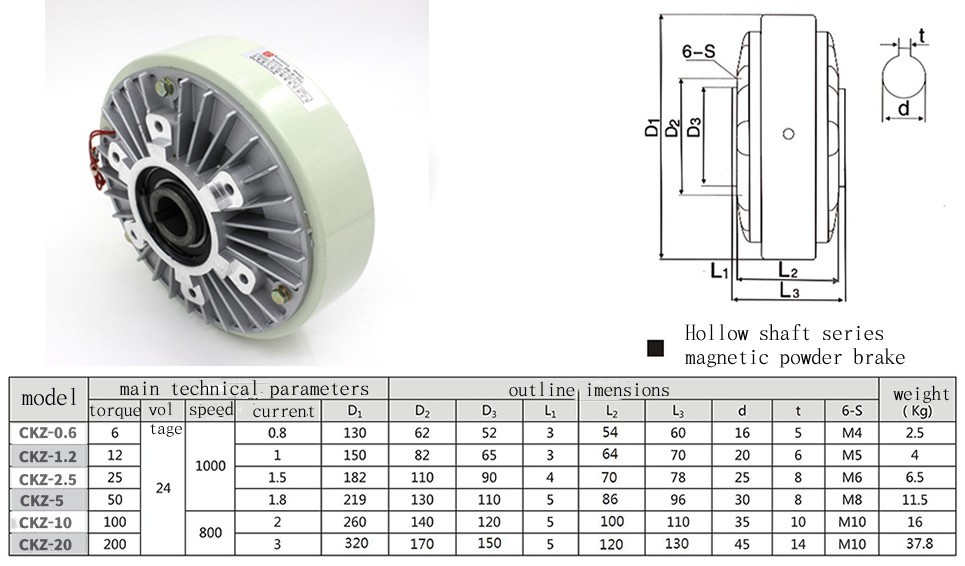

Hollow shaft magnetic powder brake

The hollow shaft magnetic powder brake (brake) is a shell rotary hollow shaft magnetic powder brake. Its heat dissipation method is natural cooling type. for use.

The features of the product are as follows:

1. It can be easily controlled in a large range, and the linearity is good;

2. It can achieve the effect of continuous sliding operation and obtain stable torque;

3. Imported bearings are used, environmental protection and no noise, and the operation is quite quiet and stable;

4. Imported magnetic powder with high heat resistance is used, which has a long service life and a relatively large heat capacity.

5. Ideal structure and design, so that it can achieve a smooth continuous and driving state;

6. Imported wool felt to effectively prevent the leakage of magnetic powder;

7. High precision, concentricity less than 0.01mm;

Similar products can refer to the hollow shaft magnetic powder clutch housing rotary type.

Installation Precautions:

1. Be sure to insert the fitting part of the bracket into the mounting plate and fasten it well;

2. The concentricity between the insertion shaft and the load shaft on the magnetic powder brake side of the hollow shaft must be controlled within 0.05mm. Because of the outer circumference rotation, a well-ventilated metal mesh must be used.
