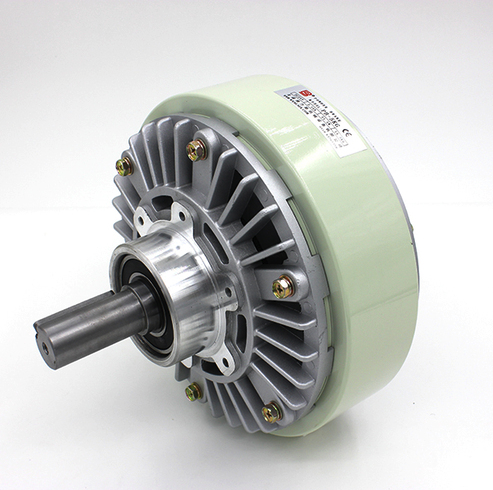

extension shaft magnetic particle brake

    The extension shaft type magnetic powder brake is the magnetic powder brake. The magnetic powder transmits the torque. This is a popular transmission part specially used for material unwinding and torque control. It is widely used in printing machines, packaging machines, slitting machines, Tension control system for industrial machinery such as cutting machine, coating machine, peritoneal machine, plastic machine, rubber machine, textile machine, printing and dyeing machine, wire and cable equipment, etc. The single-axis magnetic powder brake adopts imported bearings and magnetic powder to improve its service life and working performance.

The use of the extended shaft magnetic powder brake is as follows:

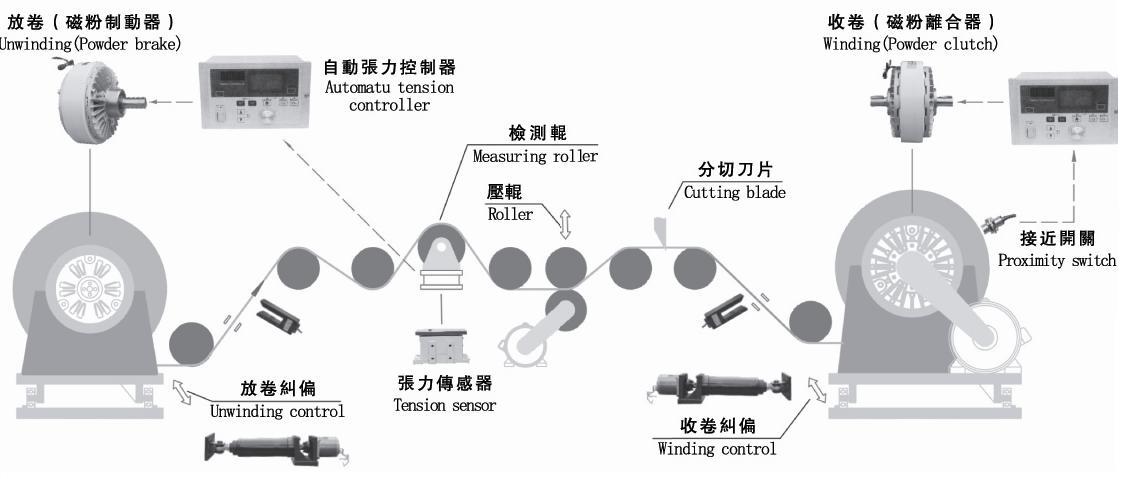

This type of extension shaft type magnetic powder brake magnetic powder (magnetic iron powder) transmits torque. It is an indispensable transmission device for the unwinding and tension control system of long-sized materials such as paper, wire, and various films. Free control and adjustment to achieve constant tension, double-shaft magnetic powder clutch rewinding, as shown below:

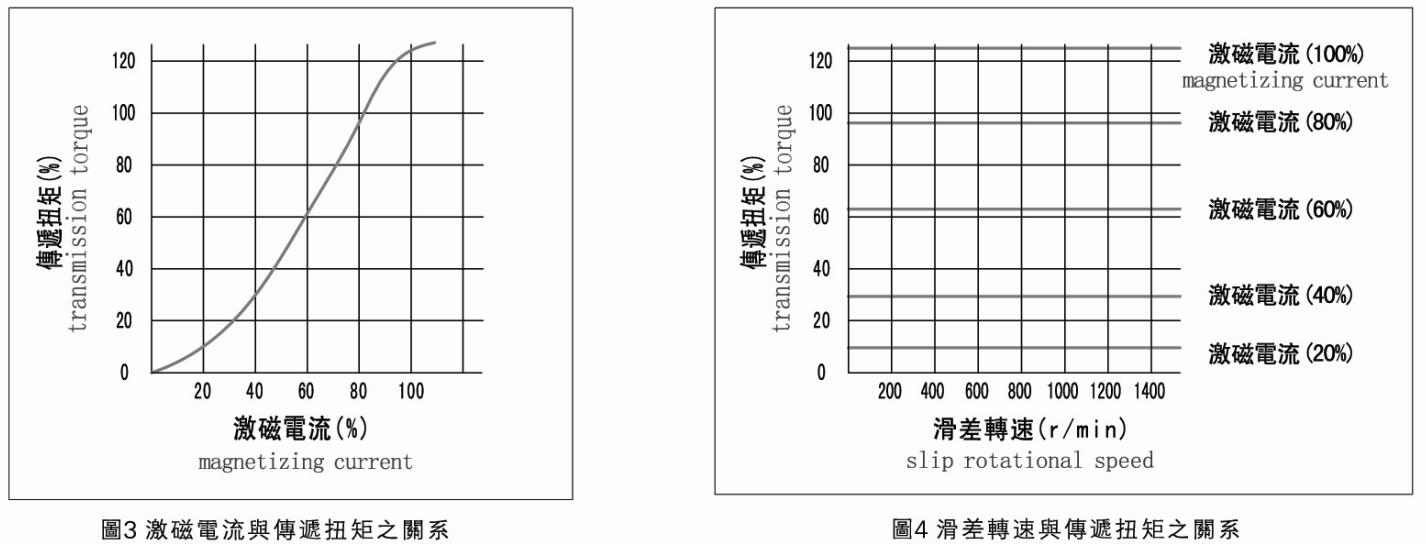

This type of extended shaft magnetic powder brake can control the transmission lead torque in a wide range. By using magnetic powder to make the working surface slide continuously, a continuous and stable torque can be obtained regardless of the slip speed. The use of particle magnetic powder with high heat resistance enables ideal cooling performance and can be used with confidence even in continuous slip operation. The working surface of the magnetic powder brake adopts a magnetic powder leakage-proof structure, and the magnetic powder is used to maintain normal operation, so that a stable torque can be obtained. . As shown below:

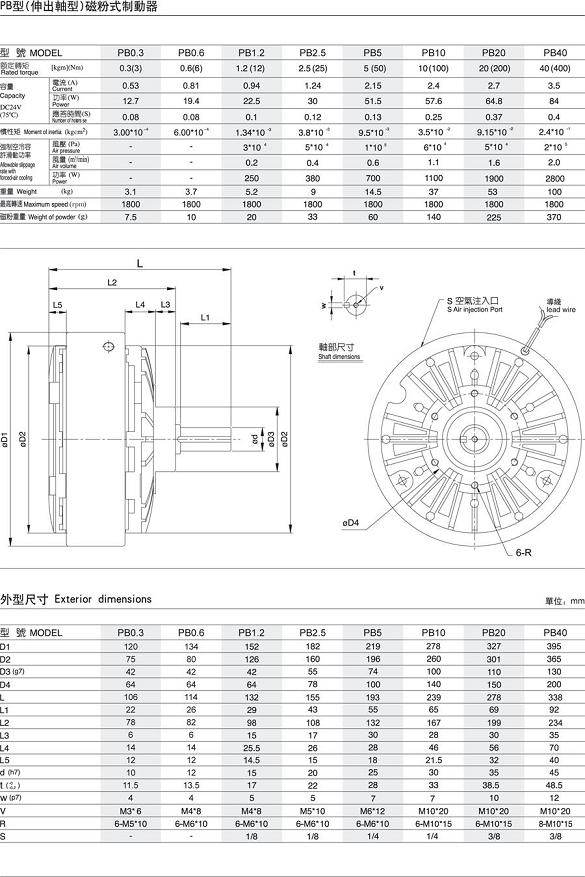

When installing the protruding shaft type magnetic powder brake, please insert the bracket into the mounting plate and fix it well. You must use an elastic coupling to connect the brake shaft and the load shaft, and the concentricity and right angle between the shafts at this time. etc. must be controlled within the allowable range of the elastic coupling used. The installation dimensions and specifications are as follows:
