Ultra-thin magnetic powder brake

Automatic tension control ultra-thin magnetic particle powder brake:

Brand: GL
Torque: 6-400Nm
Voltage: DC-24V
Packaging cartons
Type: hollow shell rotary magnetic powder brake (hollow shaft coupling, spigot support)


PB-K type (hollow shaft connection, spigot support) thin magnetic powder brake

1, When using thin magnetic powder brakes, you must pay attention to the humidity of the operating environment, that is, pay attention to the surrounding moisture. If the magnetic powder is damp, the performance of the magnetic powder brake will be affected.

2, And when the magnetic powder brake runs for a long time, the surface temperature will rise, so special attention should be paid to prevent moisture or oil from entering the interior. If the gear box is installed improperly, the oil will penetrate through the shaft.

3, It is recommended to completely seal it with a film during installation. In addition, long-term excessive operation will greatly reduce the performance of the magnetic powder brake, or cause other failures. Therefore, please ensure that the operation is within the allowable sliding work rate.

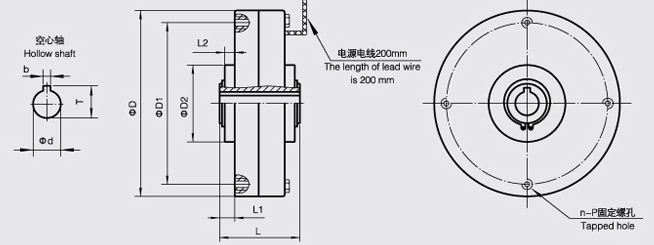

Model	Rated torque (N.m)	magnetzing current		Allowable rotational speed(r/rnin)	Slip power (W)	flywheel torque (kg m2)	Dimensions		Shaft coupling size				center ring size
Model	Rated torque (N.m)	Voltage (V)	Current (A)	Allowable rotational speed(r/rnin)	Slip power (W)	flywheel torque (kg m2)	D	L	d(h7)	b(p7)	T(0-0.2)	L1	L２	D1	D2(g7)	n-P×depth
PB-K3	3	24	0.4	400	30	3.5×10-5	88	43	15	5	17.3	9	6.5	80	47	3-M4×6
PB-K6	6	24	0.4	400	50	9×10-5	105	49	20	6	22.8	9.5	6.5	97	55	3-M4×6
PB-K12	12	24	0.5	400	100	1.6×10-4	118	50	25	8	28.3	10	7	110	62	3-M4×8
PB-K25	25	24	1.1	600	150	2.8×10-4	139	60	25	6	27.8	9	5	129	62	4-M5×10
PB-K50	50	24	1.35	600	200	10×10-4	182	72	30	8	33.3	12.5	8	169	80	4-M6×10
PB-K100	100	24	1.5	600	300	3.8×10-4	232	94	35	10	38.3	16	10	216	100	4-M8X12
