Auto tension controller

Why Choose Web Tension Controller

    In the process of coiling control, tension must be maintained to prevent material stretching, wrinkling, breaking, or
inconsistent. Web tension system can improve tension uniformity and decrease defects in unwinding, intermediate and rewinding place.
    Adapt to machine with higher production speed. Reduce waste and downtime to achieve the work efficiency greatly.

Features ：

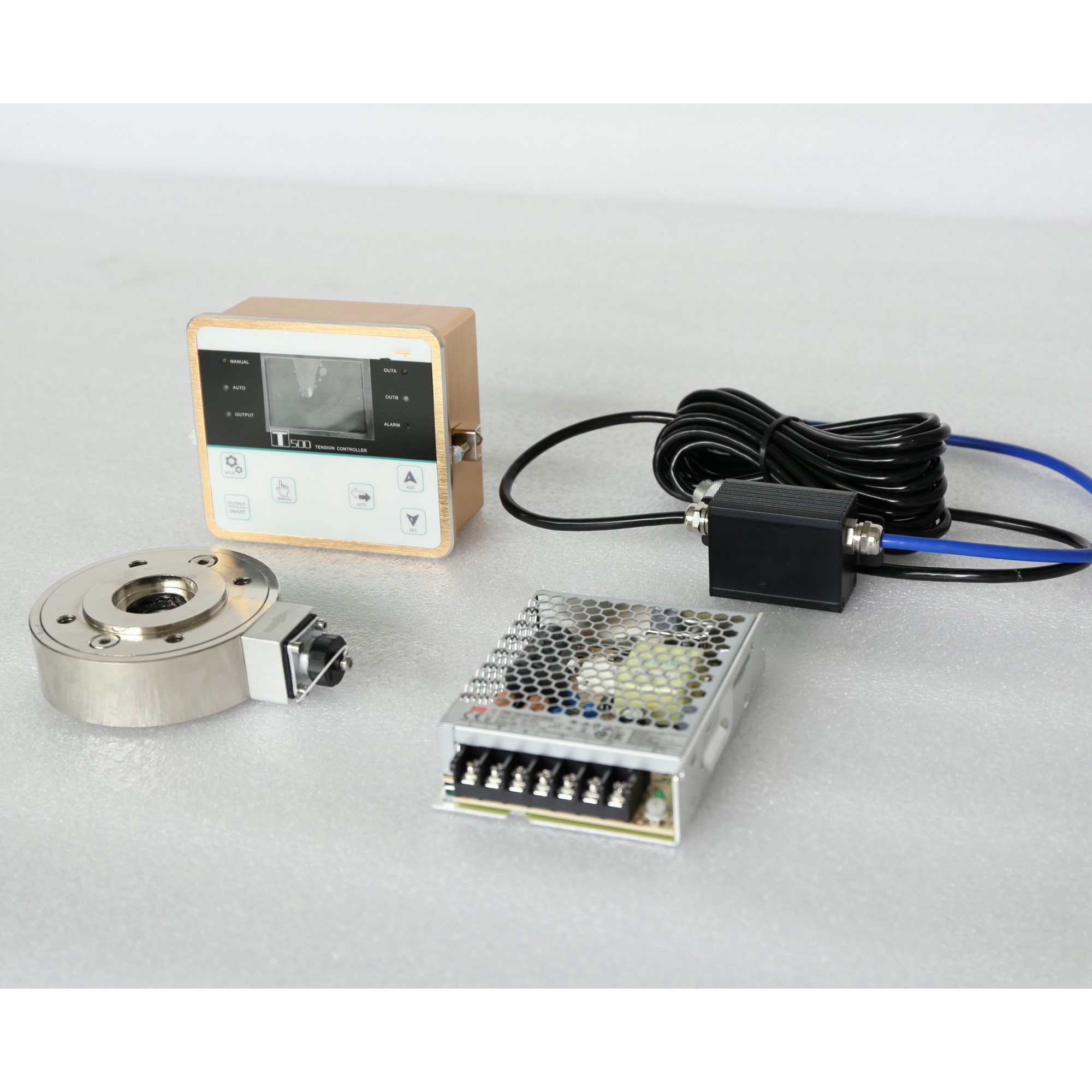

1. SG-5000 is a full-automatic web tension controller with Korea Samsung 2.4 inch TFT LCD screen.

2. High signal precision and high processing speed: German analog16-bit high-precision AD sampling for l us.

    Fuzzy PID algorithm; USA ST32-bit single-core processor, dominant frequency 168MHz. .

3. It can drive the magnetic powder brake to control tension.
4. It can also work automatically using internal calculation without sensors.
5. It can be widely used in many industries such as paper-making, printing, packaging, textile, non-woven fabric, etc.
6. The precision of tension control directly affects the processing quality of the coiled material, so choosing a high-

    performance web tension controller is the key to improve the production.

Advantages：

1. It has a simple tension calibration process and accurate tension measurement, with high stability and reliability.
2. Receive single/dual sensor input signals and adapt to various load cells
3. PID control to ensure the operation without tension overshoot
4. Metal shell with strong anti-interference capacity without sparks

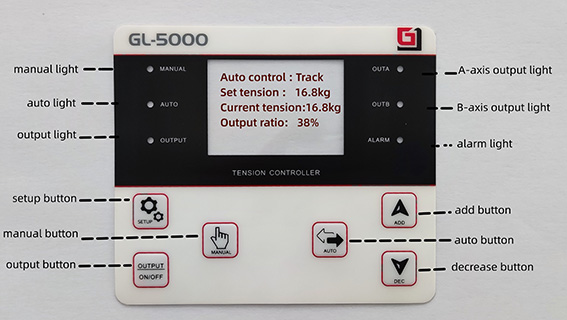

5.Tension is automatically controlled with simple touch-tone operation making it the easiest controller.

    Technical Parameters Of GL-5000

Input power: single-phase power supply AC 185-264V,50/60HZ

Output power: power supply DC 0-24V, 4A MAX

Applicable models: mask machine, magnetic powder clutch brake,                              voltage regulator supply

External control signal: 0-10V, corresponding output 0-24V

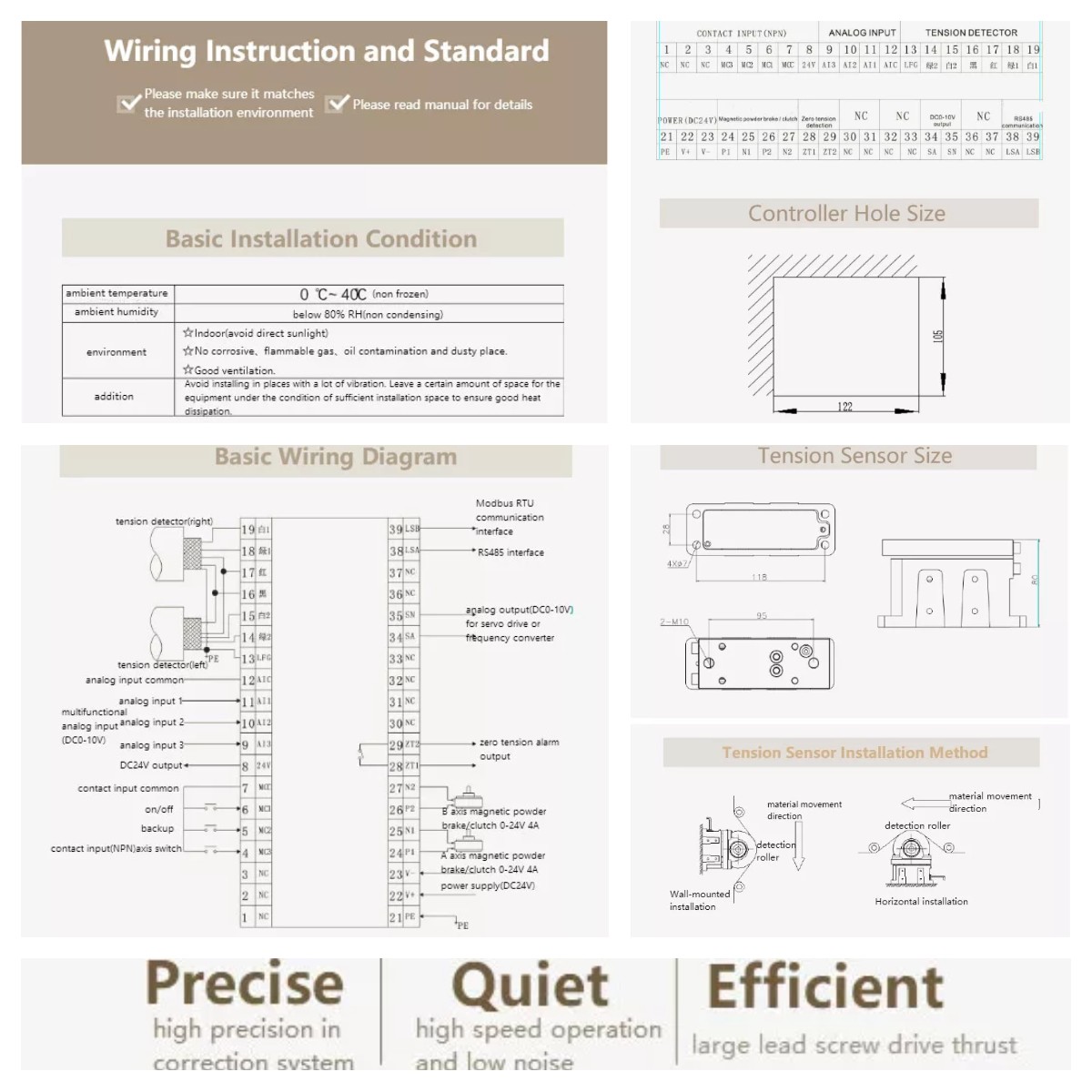

Installation methods. floor model, wall-mounted. embedded

Required environment: 0-40C, relative humidity<80RH
