hot sales printing machine rewind unwind taper LX series tension sensor for powder brake
technical parameter:
Rated load: 15Kg, 30Kg, 50Kg, 1OOKg, 200Kg
Working principle: use full-bridge strain gage detection
Working environment: -10~60°C
relative humidity <90% non-condensing
Temperature stability: <0.3% (-10~60°C range)
Working voltage: 5V
Full scale output: 200mV
Weight: about 2Kg
Use bearing seat: 204#

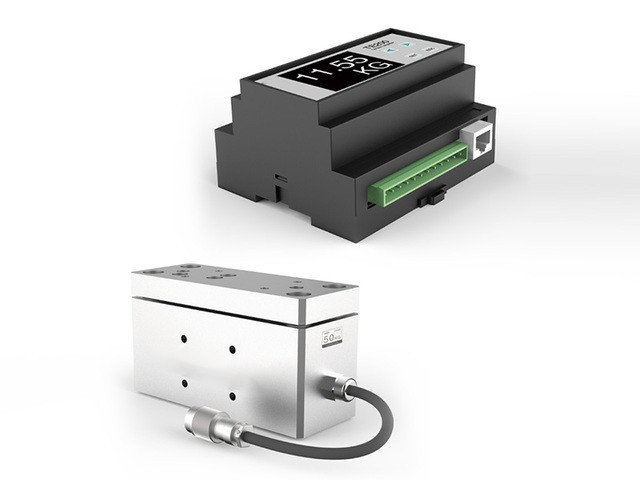

Tension sensor LX series is detected by using full bridge strain gauge and processed by
integrated circuit to detect the magnitude of tension. It has the characteristics of low
temperature drift, high stability value and good linearity.

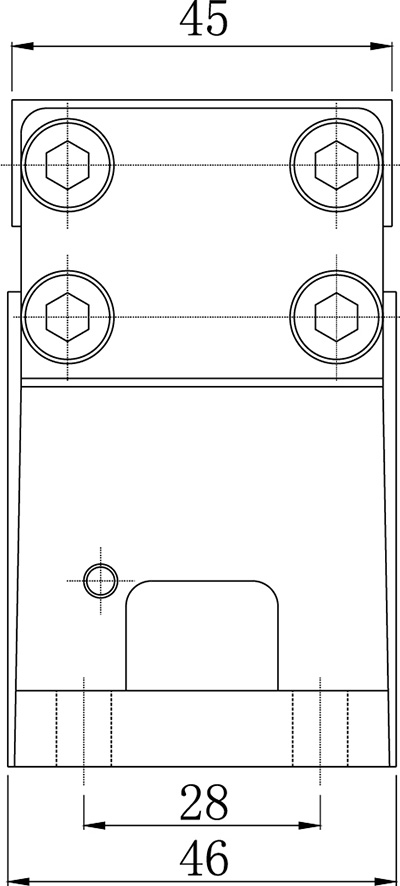

Product size：

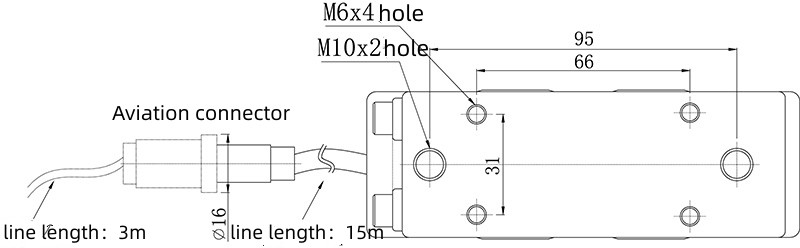

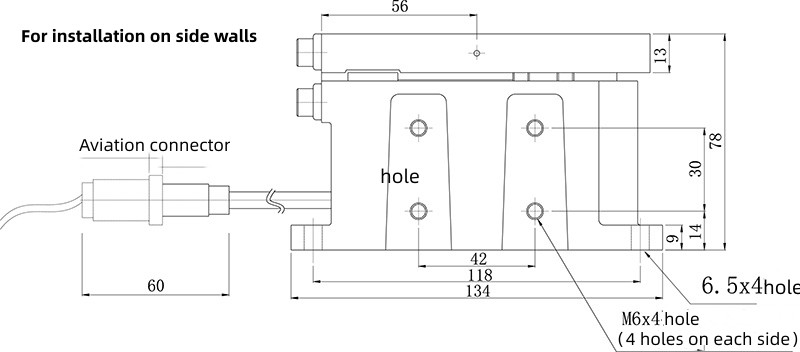

Installation size:
