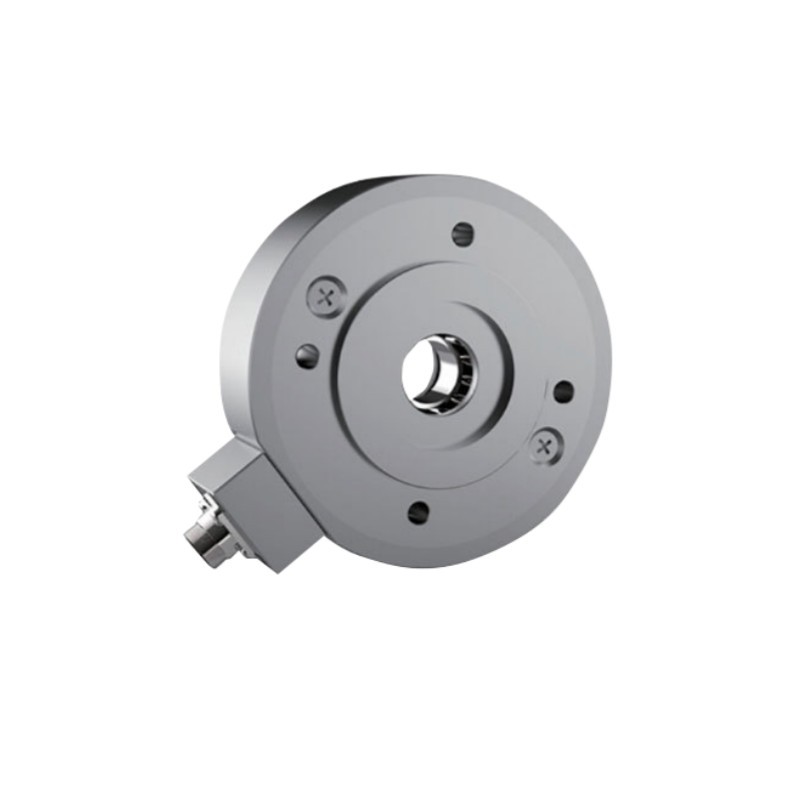

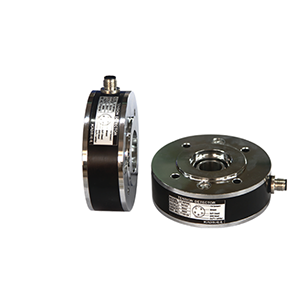

new style hot sales high quality tension controller load cell for 2022
technical parameter:
Excitation voltage: 10VDC
Output signal: 2mVN (factory setting)
Strain gauge/resistor gauge: 350Ω
Detection type: full bridge
Maximum output signal: 150% TYP
Comprehensive error: (hysteresis, repeatability, nonlinearity error) <0.50%
Maximum overload capacity: 500% of rated load
Detection type: full bridge
Features：
1. Low Lag
2. Temperature compensation
3. Full-bridge strain resistance gauge
4. Excellent linearity and stability
5. It is suitable for the detection of idler rolls or live rolls
6. The overload capacity is up to 500% of the rated load
