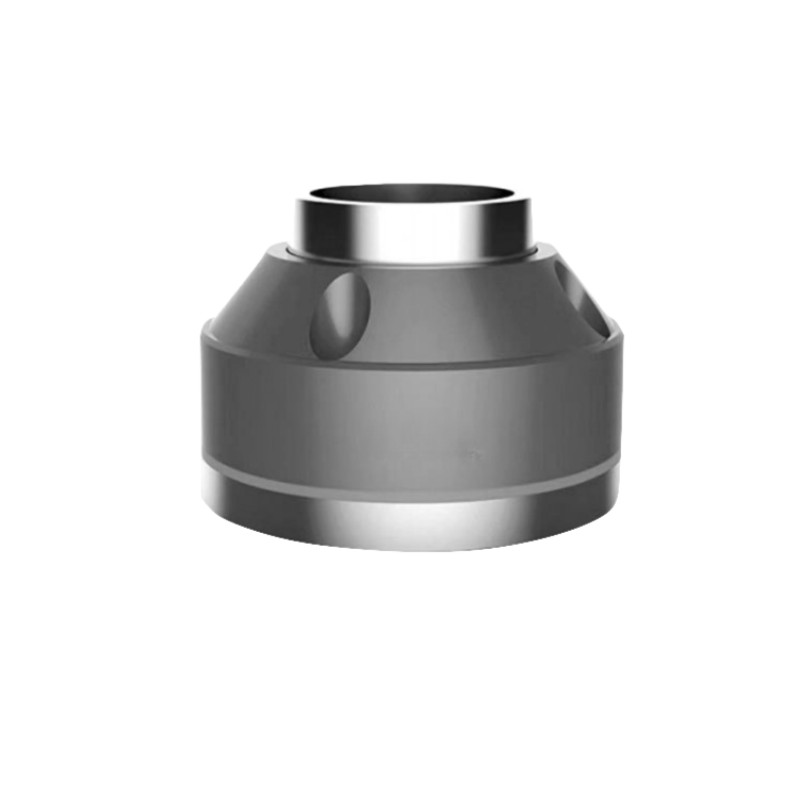

Through-shaft load cell

hot sales printing machine rewind unwind taper LX series tension sensor for powder brake
technical parameter:

Rated load: 15Kg, 30Kg, 50Kg, 1OOKg, 200Kg
Working principle: use full-bridge strain gage detection
Working environment: -10~60°C
relative humidity <90% non-condensing
Temperature stability: <0.3% (-10~60°C range)
Working voltage: 5V
Full scale output: 200mV
Weight: about 2Kg
Use bearing seat: 204#

Through-shaft load cell-1.jpg

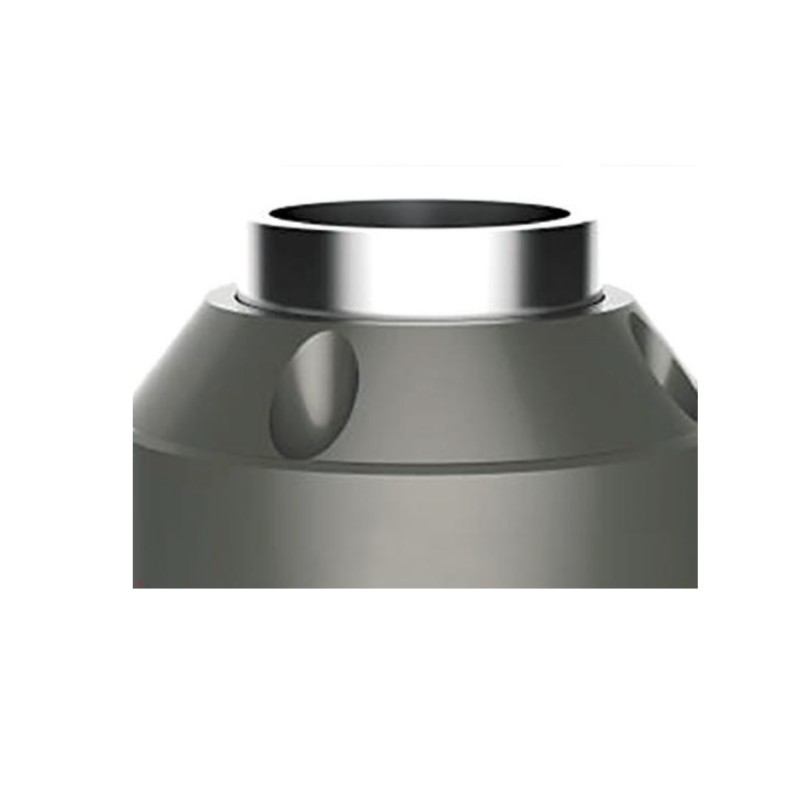

Through shaft tension sensor

The through-shaft tension sensor uses imported full-bridge strain gauges (high-precision with built-in temperature compensation) for detection, and through high-precision signal and temperature compensation processing, it has the characteristics of high precision, low temperature drift, and good linearity. The sensor can effectively shield static electricity and Group pulse interference of frequency converter. It has a built-in overload limit to prevent damage to the sensor during overload. The sensors have various measuring ranges such as 30KG, 50KG, 100KG, and 200KG.
